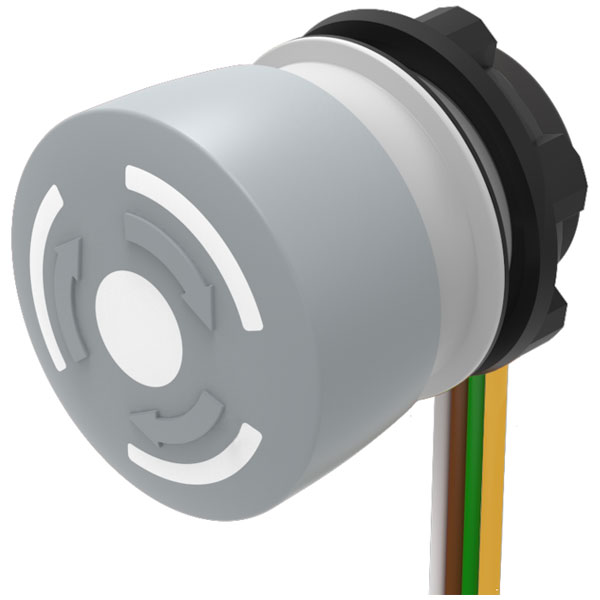

EAO 84-6230.0040 is a Stop Pushbutton that is grey in colour and features one normally closed (1NC) and one normally open (1NO) contact configuration. This non-illuminated pushbutton is equipped with a cable that extends to a length of three metres, making it suitable for a variety of applications where discrete signalling is required. Its robust design makes it ideal for integration in control panels, industrial machinery, and safety systems where an immediate halt of operation is required.
| Type |
Pushbutton |
| IP Rating |
Ip65, Ip66, Ip67, According To Din En 60529 |
| Approbations |
Cb (iec 60947-5-1. Iec60947-5-5), Ccc, Ul Nkcr |
| Climate Resistance |
Damp Heat, Cyclic: 96 Hours, + 25 °c/97 %, + 55 °c/93 % Relative Humidity, As Per En Iec 60068-2-30 | Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Saline Mist: 96 Hours, + 35 °c In Chemical Solution Nacl, As Per En Iec 60068-2-11 | Dry Heat: 96 Hours, + 70 °c, As Per En Iec 60068-2-2 | Low Temperature: 96 Hours, – 40 °c (as Per En Iec 60068-2-1) | Simulated Solar Radiation Test Sa2 And Weathering Test Sb1 As Per En Iec 60068-2-5 |
| Conformities |
Ce, Ukca, 2006 / 42 / Ec (md), 2011 / 65 / Ec (rohs) |
| Contacts Concat |
1 Nc / 1 No |
| Contacts Material |
Gold |
| Electrical Lifetime |
50 000 Cycles Of Operation |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Front Dimension Concat |
Ø 32mm |
| Front Form |
Round |
| Illumination Colour Concat |
None |
| Lens Colour |
Grey |
| Lens Illumination |
Non Illuminated |
| Lens Material |
Plastic |
| Lens Shape |
Mushroom-head |
| Material |
Plastic, According To Ul 94 V0 |
| Mechanical Lifetime |
=50 000 Cycles Of Operation |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Temperature |
– 25 °c … + 70°C |
| Output Hsd |
Yes |
| Pollution degree |
3, According To En Iec 60947-1 |
| Protection Class |
Ii, According To En / Iec 60947-5 |
| Release Type |
Twist To Unlock |
| Shock Resistance |
Max. 150 M / S², Pulse Width 11 Ms, 3-axis, (semi-sinusoidal As Per En Iec 60068-2-27) |
| Switching Action Concat |
Maintained |
| Switching System |
Slow-make Switching Element |
| Terminal Concat |
Flat ribbon cable 300mm |
| Thermal Current Ith |
5 A |
| Vibration Resistance |
Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6) |
| Weight |
0.036 |
