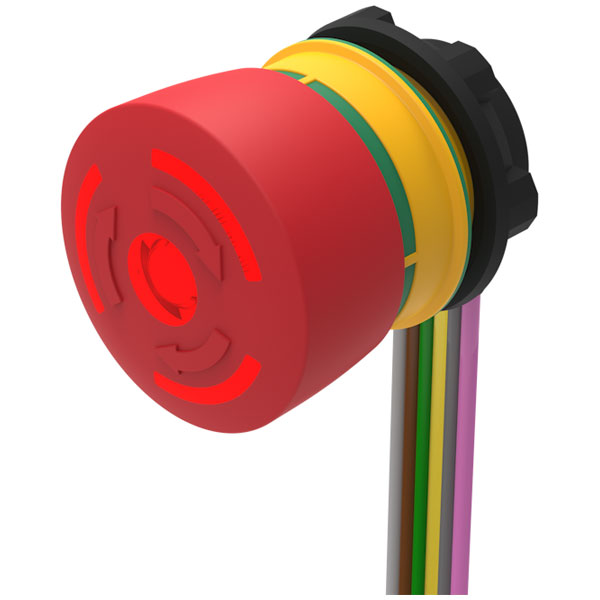

EAO 84-5331.2B40 is a robust emergency stop pushbutton designed for critical safety applications in industrial environments. The device features one normally closed (1NC) and one normally open (1NO) contact configuration, providing reliable circuit control in emergency scenarios. This pushbutton is equipped with a red, illuminated LED, enhancing visibility and ensuring that it can be easily located and actuated under challenging conditions. The unit comes with a 300 mm cable for convenient installation and integration.
| Type |
E-Stop Pushbutton |
| IP Rating |
Ip65, Ip66, Ip67, According To Din En 60529 |
| Approbations |
Cb (iec 60947-5-1. Iec60947-5-5), Ccc, En Iso 13850, Ul Nisd |
| Climate Resistance |
Damp Heat, Cyclic: 96 Hours, + 25 °c/97 %, + 55 °c/93 % Relative Humidity, As Per En Iec 60068-2-30 | Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Saline Mist: 96 Hours, + 35 °c In Chemical Solution Nacl, As Per En Iec 60068-2-11 | Dry Heat: 96 Hours, + 70 °c, As Per En Iec 60068-2-2 | Low Temperature: 96 Hours, – 40 °c (as Per En Iec 60068-2-1) | Simulated Solar Radiation Test Sa2 And Weathering Test Sb1 As Per En Iec 60068-2-5 |
| Conformities |
Ce, 2006 / 42 / Ec (md), 2011 / 65 / Ec (rohs) |
| Contacts Concat |
1 Nc / 1 No |
| Contacts Material |
Gold |
| Electrical Lifetime |
50 000 Cycles Of Operation |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Front Dimension Concat |
Ø 32mm |
| Front Form |
Round |
| Illumination Colour Concat |
Red |
| Lens Colour |
Red |
| Lens Illumination |
Illuminated |
| Lens Material |
Plastic, According To Ul 94 V0 |
| Lens Shape |
Mushroom-head |
| Material |
Plastic, According To Ul 94 V0 |
| Mechanical Lifetime |
250 000 Cycles Of Operation |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Concat |
5 - 30 V / 9.7 - 12.4mA |
| Operating Current Concat |
9,7 - 12,4mA |
| Operating Temperature |
– 25 °c … + 70°C |
| Operating Voltage 1 Concat |
5 - 30 V |
| Operating Voltage Concat |
5 - 30 V Dc (led) |
| Output Hsd |
Yes |
| Pollution degree |
3, According To En Iec 60947-1 |
| Protection Class |
Ii, According To En / Iec 60947-5 |
| Release Type |
Twist To Unlock |
| Shock Resistance |
Max. 150 M / S², Pulse Width 11 Ms, 3-axis, (semi-sinusoidal As Per En Iec 60068-2-27) |
| Switching Action Concat |
Maintained |
| Switching System |
Slow-make Switching Element |
| Terminal Concat |
Flat ribbon cable 300mm |
| Thermal Current Ith |
5 A |
| Vibration Resistance |
Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6) |
| Weight |
0.027113668 |
