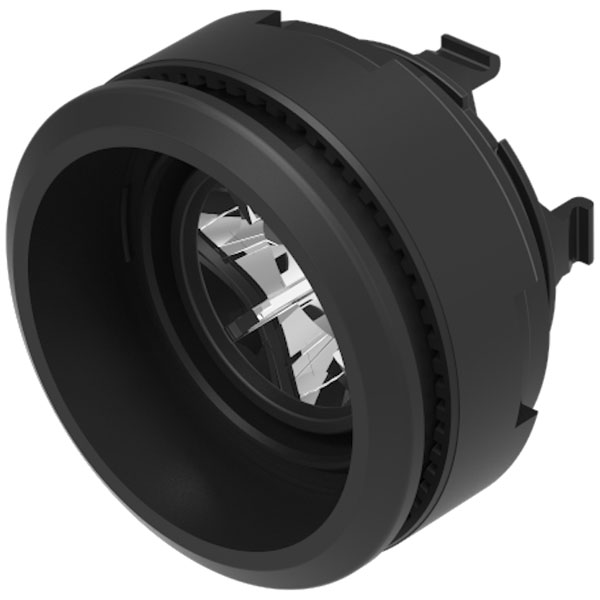

EAO 84-2101.0 is an illuminated pushbutton-actuator designed with a sleek black aesthetic, constructed from durable D25 plastic, ensuring robustness and longevity in various operational environments. It is engineered to provide reliable performance in high-demand applications, where visual indication is crucial. Typical uses of this component include control panels, industrial machinery, and automation systems, where it serves as an interface for human-machine interaction. The actuators illumination feature ensures visibility and usability in low-light conditions, enhancing operational functionality.
| Type |
Pushbutton actuator |
| IP Rating |
Ip40 |
| Approbations |
Ebc (tsi Prm), Nff |
| Climate Resistance |
Damp Heat, Cyclic: 96 Hours, + 25 °c/97 %, + 55 °c/93 % Relative Humidity, As Per En Iec 60068-2-30 | Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Rapid Change Of Temperature: 100 Cycles, – 40 °c … + 80 °c, As Per En / Iec 60068-2-14 |
| Conformities |
Ce, Ukca, 2011 / 65 / Ec (rohs) |
| Design |
Flush |
| Dimensions Concat |
Ø 25mm |
| Erp Ehq Custom Number |
8538.9000 |
| Erp Ehq Source Country |
De |
| Front Bezel Colour |
Black |
| Front Bezel Material |
Plastic |
| Front Dimension Concat |
Ø 25mm |
| Front Form |
Round |
| Lens Illumination |
Illuminated |
| Mechanical Lifetime |
=1 Mil. Cycles Of Operation |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Temperature |
– 25 °c … + 70°C |
| Output Hsd |
Yes |
| Switching Action Concat |
Momentary |
| Switching System |
Short-travel Element |
| Weight |
0.00385 |
