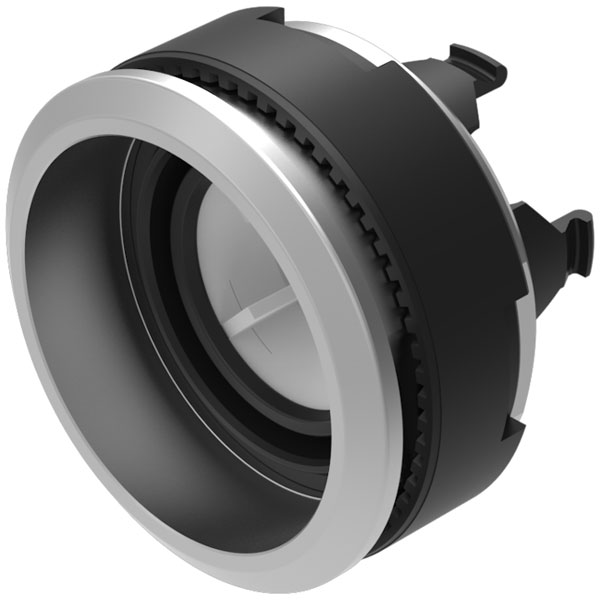

EAO 84-1201.7 Illuminated pushbutton-actuator natural D25 alu IP 67

EAO 84-1201.7 is a meticulously designed illuminated pushbutton actuator, crafted to meet the demanding requirements of engineering applications. This component features a robust D25 aluminium construction, providing excellent durability and resilience in harsh environments, while its IP 67 rating ensures superior protection against dust and water ingress, making it suitable for both indoor and outdoor use. The actuators natural aluminium finish not only enhances its aesthetic appeal but also contributes to its corrosion resistance.

Type	Pushbutton actuator
IP Rating	Ip65, Ip67
Approbations	Ebc (tsi Prm), Nff
Climate Resistance	Damp Heat, Cyclic: 96 Hours, + 25 °c/97 %, + 55 °c/93 % Relative Humidity, As Per En Iec 60068-2-30 | Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Rapid Change Of Temperature: 100 Cycles, – 40 °c … + 80 °c, As Per En / Iec 60068-2-14
Conformities	Ce, Ukca, 2011 / 65 / Ec (rohs)
Design	Flush
Dimensions Concat	Ø 25mm
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	De
Front Bezel Colour	Nature
Front Bezel Material	Aluminium
Front Dimension Concat	Ø 25mm
Front Form	Round
Lens Illumination	Illuminated
Mechanical Lifetime	=1 Mil. Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 70°C
Output Hsd	Yes
Switching Action Concat	Momentary
Switching System	Short-travel Element
Weight	0.00749
