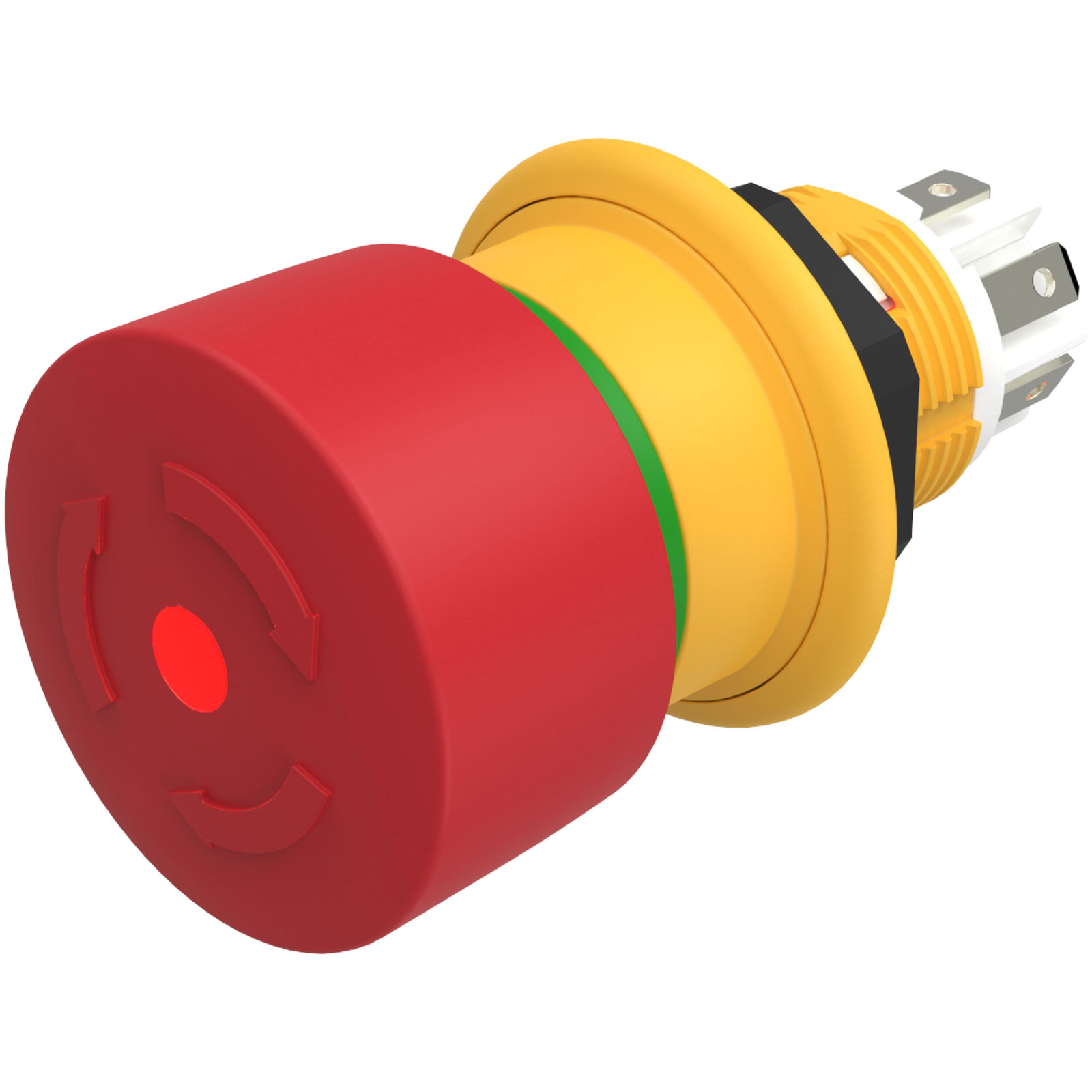

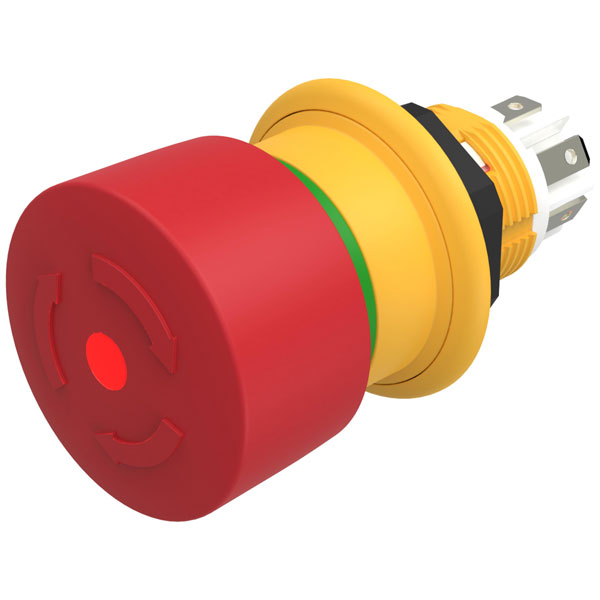

The EAO Series 61 features an illuminated red emergency stop mushroom head actuator, with green indicator in yellow plastic housing, with twist to release functionality.
Comprehensive and versatile. EAO offers the modular and recognised Series 61, a versatile and modular switch range for complex industrial applications.
Whether for applications with high temperature variations or mechanically demanding environments, the versatile Series 61 is always the first choice. Due to Series 61 modular construction and full selection of functions, you will find the right solution for your industrial application.
- Switching Action: Maintained
- Function: Emergency Stop Switch
- Housing Material: Plastic
- Housing Colour: Yellow with Green Indicator
- Illumination: LED with polarity reversal protection
- Button Material: Plastic
- Button Colour: Red
- Button Diameter: Ø 27 mm
- Mounting cut-out: Ø 16 mm
- Front IP protection: IP65 | IP67 | IP69K
- Weight 0.02 kg
| Type |
Twist Release |
| Switch Function |
Maintained |
| Approbations |
Cb (en 60947), Ul Nisd (culus, Ul Eu) Listed E-file-nr.: E341760 |
| Climate Resistance |
Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Dry Heat: 96 Hours, + 65 °c, As Per En Iec 60068-2-2 | Low Temperature: 96 Hours, – 25 °c (as Per En Iec 60068-2-1) ) Uv Test, 56 Days (en 60068-2-5:1999) |
| Conformities |
Ce, Ukca |
| Contacts Concat |
2 Nc |
| Dimensions Concat |
Ø 27mm |
| Electrical Lifetime |
=20 000 Cycles Of Operation |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Front Dimension Concat |
Ø 27mm |
| Front Form |
Round |
| Illumination Colour Concat |
Red |
| Lens Colour |
Red |
| Lens Illumination |
Illuminated |
| Lens Material |
Plastic |
| Lens Shape |
Mushroom-head |
| Mechanical Lifetime |
=20 000 Cycles Of Operation |
| Operating Concat |
6 - 32 V |
| Operating Temperature |
– 25 °c … + 55 °c |
| Operating Voltage 1 Concat |
6 - 32 V |
| Operating Voltage Concat |
6 - 32 V Dc |
| Output Hsd |
Yes |
| Pollution degree |
3, According To En Iec 60947-1 |
| Release Type |
Twist To Unlock |
| Shock Resistance |
Max. 150 M / S², Pulse Width 11 Ms, 3-axis, (semi-sinusoidal As Per En Iec 60068-2-27) |
| Switching Action Concat |
Maintained |
| Terminal Concat |
Plug-in terminal, 2.8 X 0.5 Mm |
| Thermal Current Ith |
0.5 A (en Iec 60947-5-1 / Max. Current In Continuous Operation At Max. + 55 Degrees C) |
| Vibration Resistance |
Max. 100 M / S² From 10 Hz ... 500 Hz, 20 Cycles, 3-axis (sinusoidal En Iec 60068-2-6) |
| Weight |
0.01854 |
