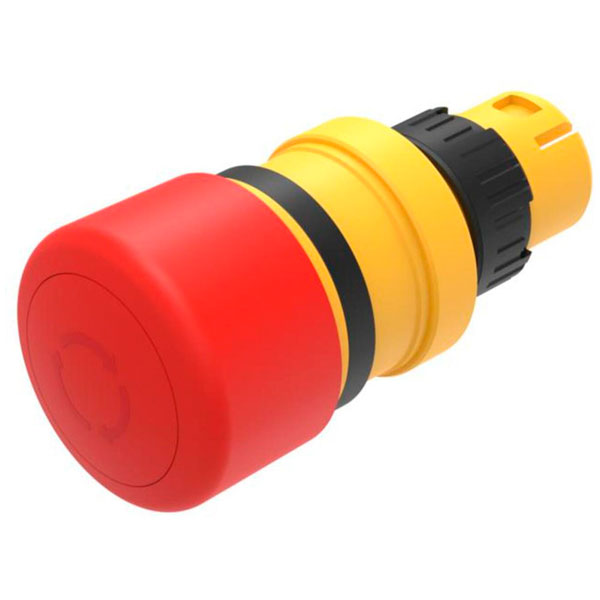

The EAO Series 61 features a non-illuminated red emergency stop mushroom head actuator in a black and yellow plastic housing, with twist to release functionality.
Comprehensive and versatile. EAO offers the modular and recognised Series 61, a versatile and modular switch range for complex industrial applications.
Whether for applications with high temperature variations or mechanically demanding environments, the versatile Series 61 is always the first choice. Due to Series 61 modular construction and full selection of functions, you will find the right solution for your industrial application.
- Switching Action: Maintained
- Function: Emergency Stop Switch
- Housing Material: Plastic
- Housing Colour: Black and Yellow
- Button Material: Plastic
- Button Colour: Red
- Button Diameter: Ø 27 mm
- Mounting cut-out: Ø 16 mm
- Front IP protection: IP65
- Weight 0.02 kg
| Type |
Twist Release |
| Switch Function |
Maintained |
| Approbations |
Cb (en 60947), Ul Nisd (culus, Ul Eu) Listed E-file-nr.: E341760 |
| Climate Resistance |
Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Dry Heat: 96 Hours, + 65 °c, As Per En Iec 60068-2-2 | Low Temperature: 96 Hours, – 25 °c (as Per En Iec 60068-2-1) ) Uv Test, 56 Days (en 60068-2-5:1999) |
| Conformities |
Ce, Ukca |
| Erp Ehq Custom Number |
8538.9000 |
| Erp Ehq Source Country |
Ch |
| Lens Colour |
Red |
| Lens Illumination |
Non Illuminated |
| Lens Material |
Plastic |
| Lens Shape |
Mushroom-head |
| Marking Text |
Arrows |
| Mechanical Lifetime |
According To Din/iec 60512-5-6 And En/iec 60947-5-1, 50 000 Cycles Of Operation |
| Operating Temperature |
– 25 °c … + 55 °c |
| Output Hsd |
Yes |
| Release Type |
Twist To Unlock |
| Shock Resistance |
Max. 150 M / S², Pulse Width 11 Ms, 3-axis, (semi-sinusoidal As Per En Iec 60068-2-27) |
| Switching Action Concat |
Maintained |
| Vibration Resistance |
Max. 100 M / S² From 10 Hz ... 500 Hz, 20 Cycles, 3-axis (sinusoidal En Iec 60068-2-6) |
| Weight |
0.02086 |
