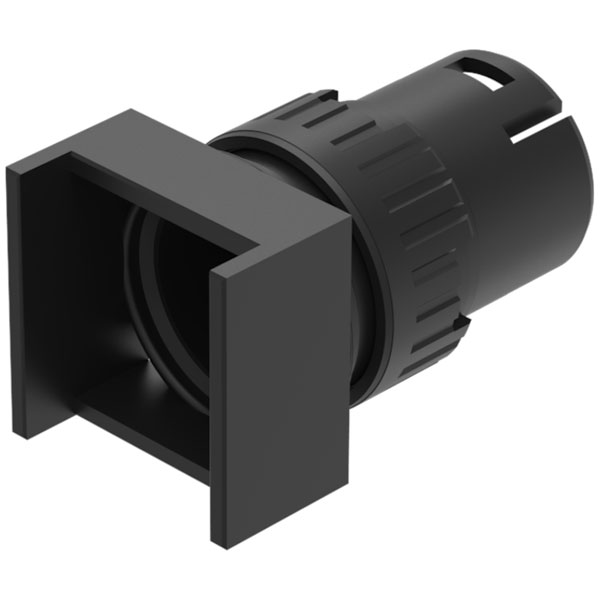

EAO 61-1220.0 Illuminated pushbutton-actuator main 18x18

EAO 61-1220.0 is an illuminated pushbutton-actuator designed with a compact main body measuring 18x18 millimetres. This product offers a reliable tactile feedback mechanism, ensuring precise operation in various control applications. The unit is equipped with LED illumination, facilitating enhanced visibility and status indication in low-light conditions. Commonly employed in industrial control panels, automotive dashboards, and human-machine interface systems, it is engineered to perform consistently in demanding environments.

Type	Pushbutton
Contact Configuration	SPNO
Switch Function	N/A
Mounting	Panel
Voltage Rating	N/A
Illumination	Clear
Panel Cutout Dimensions	16.2
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	Ch
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	18 Mm X 18 Mm
Front Form	Square
Lens Illumination	Illuminated
Mechanical Lifetime	According To Din/iec 60512-5-6 And En/iec 60947-5-1, 1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 16mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Switching Action Concat	Maintained
Weight	0.0044
