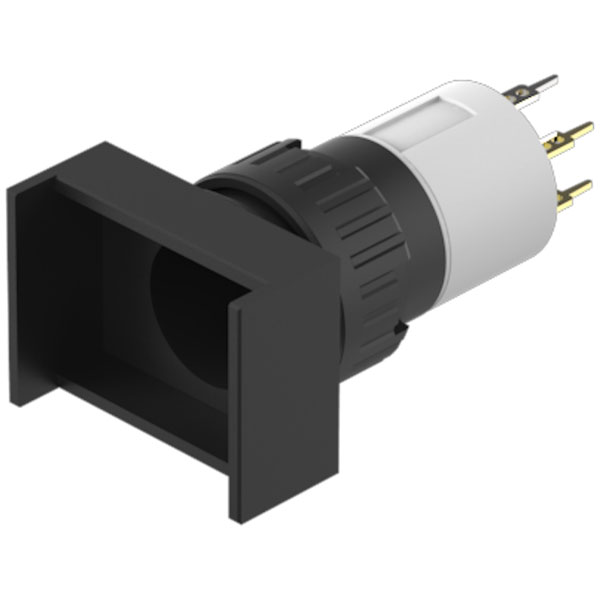

EAO 51-423.036 Illuminated pushbutton mom LL 1NC+1NO UT 18x24 gold

EAO 51-423.036 is an illuminated pushbutton designed for engineering applications requiring reliable and efficient operation. This component features a momentary action with one normally closed (NC) and one normally open (NO) contact configuration, providing versatile control functions. Encased in a gold-coloured bezel, the pushbutton dimensions are 18x24 millimetres, making it suitable for compact setups. Its design is commonly applied in control panels, industrial machinery, and other user-interface applications.

Type	Pushbutton
Contacts Concat	1 Nc / 1 No
Contacts Material	Gold
Design	Raised
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	24 Mm X 18 Mm
Front Form	Rectangular
Ip Front Protection	Ip65, According To Din En 60529
Lens Illumination	Illuminated
Mechanical Lifetime	5 Mil. Cycles Of Operation
Operating Temperature	– 25 °c … + 55 °c, Mounted As A Block, Make Sure The Heat Can Escape Freely
Output Hsd	Yes
Shock Resistance	15 G For 11 Ms, As Per Din / En 60512-4-3, Din / En 60068-2-27 (single Impacts, Semi-sinusoidal)
Switching Action Concat	Momentary
Switching System	Low-level Element
Terminal Concat	Universal Terminal, 2 X 0.5 Mm
Weight	0.00756
