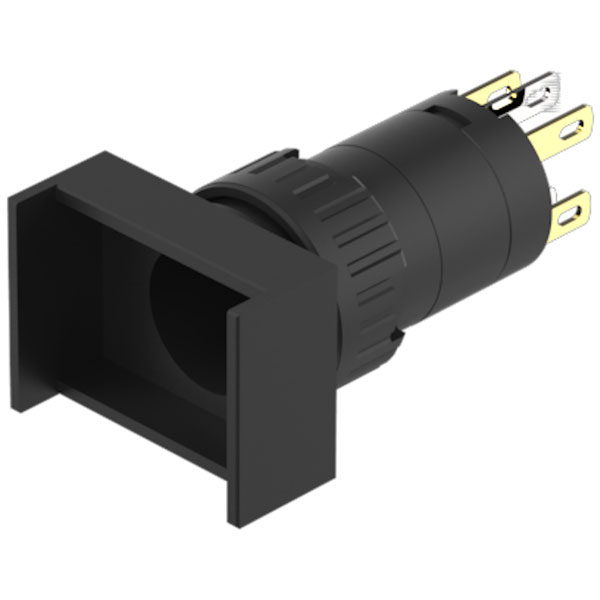

EAO 51-261.022 is an illuminated pushbutton featuring both a single normally closed (NC) contact and a single normally open (NO) contact configuration. This component is distinguished by its precision-engineered switch mechanisms, ensuring reliable operation in both signalling and control applications. The device measures 18x24 millimetres and incorporates gold and silver contacts, which provide enhanced conductivity and resistance to corrosion, making it suitable for demanding environments. Typical applications for this illuminated pushbutton include industrial control systems.
| Type |
Pushbutton |
| Approbations |
Cb (iec 61058-1), Cqc, Csa, Dnv, Enec (en 61058-1), Ul |
| Climate Resistance |
Standard Condition, As Per Din En 60068-2-30 | Changing Condition, As Per Din En 60068-2-14 |
| Conformities |
Ce, Ukca, 2011 / 65 / Ec (rohs), 2014 / 30 / Eu (emc), 2014 / 35 / Eu (lvd) |
| Contacts Concat |
1 Nc / 1 No |
| Contacts Material |
Gold |
| Design |
Raised |
| Electrical Lifetime |
50 000 Cycles Of Operation |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Front Bezel Colour |
Black |
| Front Bezel Material |
Plastic |
| Front Dimension Concat |
24 Mm X 18 Mm |
| Front Form |
Rectangular |
| Ip Front Protection |
Ip65, According To Din En 60529 |
| Lens Illumination |
Illuminated |
| Max No Modules |
4 |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Operating Temperature |
– 25 °c … + 55 °c, Mounted As A Block, Make Sure The Heat Can Escape Freely |
| Output Hsd |
Yes |
| Protection Class |
Ll |
| Shock Resistance |
15 G For 11 Ms, As Per Din / En 60512-4-3, Din / En 60068-2-27 (single Impacts, Semi-sinusoidal) |
| Switching Action Concat |
Maintained |
| Switching System |
Snap-action Switching Element |
| Terminal Concat |
Plug-in terminal, 2.8 X 0.5 Mm |
| Thermal Current Ith |
5 A, According To En / Iec 60947-5-1 | The Maximum Current In Continuous Operation And At Ambient Temperature Not Exceeding The Quoted Maximum Values. |
| Vibration Resistance |
10 G At 10 Hz…1500 Hz, Amplitude 0.75 Mm (sinusoidal), According To Din En 60512-4-4, Din En 60068-2-6 |
| Weight |
0.00853 |
