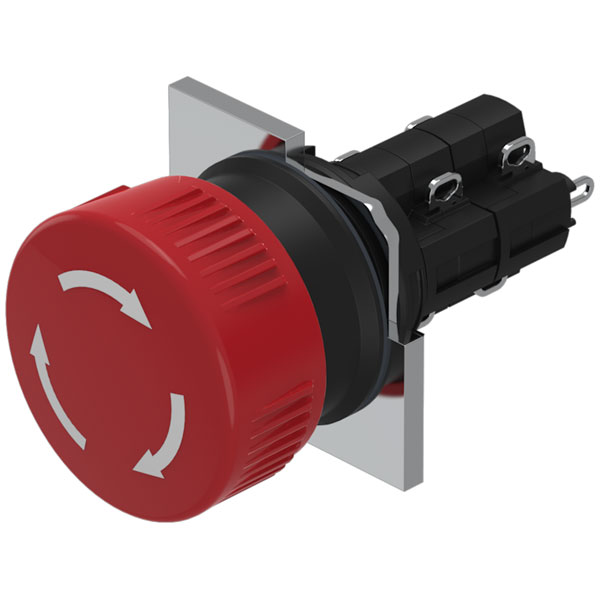

EAO 51-259.025 Stop switch with twist release red SA 2NC+2NO ST D25 gold/silver

EAO 51-259.025 is a stop switch with a twist release mechanism, designed for precision and reliability in safety-critical environments. It features a red actuator and includes two normally closed (2NC) and two normally open (2NO) contacts, providing versatile control options. The switch is built to accommodate both gold and silver contact materials, ensuring compatibility with low and high electrical loads. Typical engineering applications for this component include machinery emergency stop systems and control panels in industrial settings.

Type	Stop Switch
Approbations	Cb (iec 61058-1), Csa, Enec (en 61058-1), Ul
Conformities	Ce, Ukca, 2006 / 42 / Ec (md), 2011 / 65 / Ec (rohs)
Contacts Concat	2 Nc / 2 No
Contacts Material	Gold
Design	Raised
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Dimension Concat	Ø 24,5mm
Front Form	Round
Ip Front Protection	Ip65, According To Din En 60529
Lens Colour	Red
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Mushroom-head
Mechanical Lifetime	100 000 Cycles Of Operation
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Release Type	Twist To Unlock
Switching Action Concat	Maintained
Switching System	Snap-action Switching Element
Terminal Concat	Soldering terminal
Weight	0.01525
