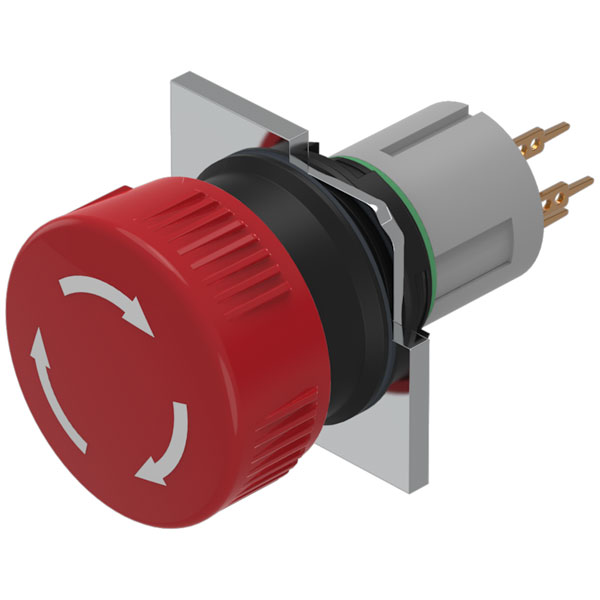

EAO 51-256.026 Stop switch with twist release red LL 1NC U D25 gold

EAO 51-256.026 is to a stop switch with twist release designed for critical safety and control applications. This device features a red lens and incorporates a locking mechanism that requires a manual twist to release, ensuring secure stoppage in emergency situations. Engineered with one normally closed (1NC) contact configuration, it offers straightforward integration into diverse circuit systems. Gold contacts provide reliability and longevity, particularly in environments where resistance to corrosion is advantageous. Such stop switches are essential in machinery control systems.

Type	Stop Switch
Contacts Concat	1 Nc
Contacts Material	Gold
Design	Raised
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Dimension Concat	Ø 24,5mm
Front Form	Round
Ip Front Protection	Ip65, According To Din En 60529
Lens Colour	Red
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Mushroom-head
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Release Type	Twist To Unlock
Switching Action Concat	Maintained
Switching System	Low-level Element
Terminal Concat	Universal Terminal, 2 X 0.5 Mm
Weight	0.01449
