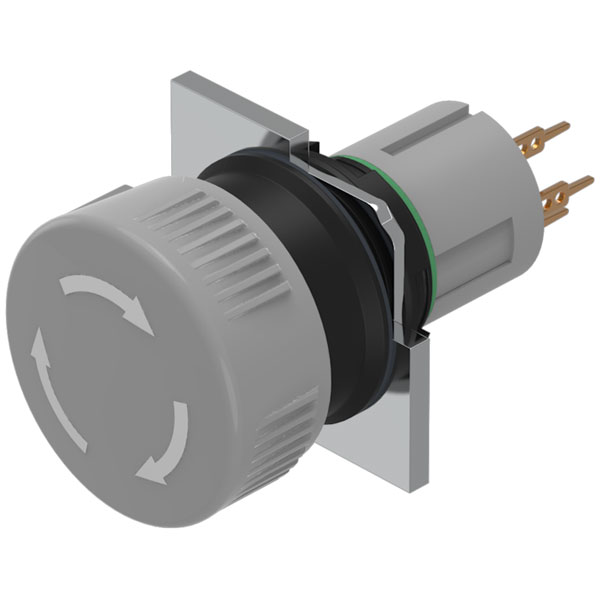

EAO 51-252.0268 Stop switch with twist release grey LL 2NC U D25 gold

EAO 51-252.0268 is a stop switch with a twist release mechanism, characterised by its grey colour and compact design, making it suitable for a range of industrial applications. It features a locking mechanism that requires manual intervention to reset, enhancing safety measures in mechanical operations. The switch contains two normally closed (2NC) contacts, and its universal design conforms to the D25 dimension specifications. The contacts are made with gold, which ensures reliable conductivity and longevity even in harsh environments.

Type	Stop Switch
Contacts Concat	2 Nc
Contacts Material	Gold
Design	Raised
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Dimension Concat	Ø 24,5mm
Front Form	Round
Ip Front Protection	Ip65, According To Din En 60529
Lens Colour	Grey
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Mushroom-head
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Release Type	Twist To Unlock
Switching Action Concat	Maintained
Switching System	Low-level Element
Terminal Concat	Universal Terminal, 2 X 0.5 Mm
Weight	0.01496
