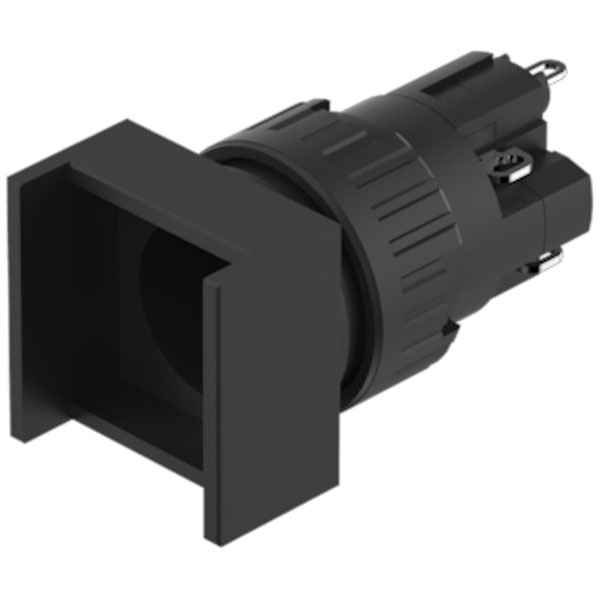

EAO 51-151.0252 is an illuminated pushbutton switch featuring a momentary action configuration and designed with a single normally closed (1NC) and a single normally open (1NO) contact. It has a compact, robust design with an 18x18 mm faceplate, making it suitable for complex machinery and ergonomic control panels where space is constrained. The pushbutton integrates gold and silver contacts known for their reliable conduction properties, ensuring long-lasting performance under varying electrical loads.
| Type |
Pushbutton |
| Approbations |
Cb (iec 61058-1), Cqc, Csa, Dnv, Eac, Enec (en 61058-1), Ul, Vde |
| Climate Resistance |
Standard Condition, As Per Din En 60068-2-30 | Changing Condition, As Per Din En 60068-2-14 |
| Conformities |
Ce, Ukca, 2011 / 65 / Ec (rohs), 2014 / 30 / Eu (emc), 2014 / 35 / Eu (lvd) |
| Contacts Concat |
1 Nc / 1 No |
| Contacts Material |
Gold |
| Design |
Raised |
| Electrical Lifetime |
50 000 Cycles Of Operation |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Front Bezel Colour |
Black |
| Front Bezel Material |
Plastic |
| Front Dimension Concat |
18 Mm X 18 Mm |
| Front Form |
Square |
| Ip Front Protection |
Ip65, According To Din En 60529 |
| Lens Illumination |
Illuminated |
| Mechanical Lifetime |
2 Mil. Cycles Of Operation |
| Operating Temperature |
– 25 °c … + 55 °c, Mounted As A Block, Make Sure The Heat Can Escape Freely |
| Output Hsd |
Yes |
| Protection Class |
Ll |
| Shock Resistance |
15 G For 11 Ms, As Per Din / En 60512-4-3, Din / En 60068-2-27 (single Impacts, Semi-sinusoidal) |
| Switching Action Concat |
Momentary |
| Switching System |
Snap-action Switching Element |
| Terminal Concat |
Soldering terminal |
| Thermal Current Ith |
The Maximum Current In Continuous Operation And At Ambient Temperature Not Exceeding The Quoted Maximum Values. | 3 A |
| Vibration Resistance |
10 G At 10 Hz…1500 Hz, Amplitude 0.75 Mm (sinusoidal), According To Din En 60512-4-4, Din En 60068-2-6 |
| Weight |
0.00615 |
