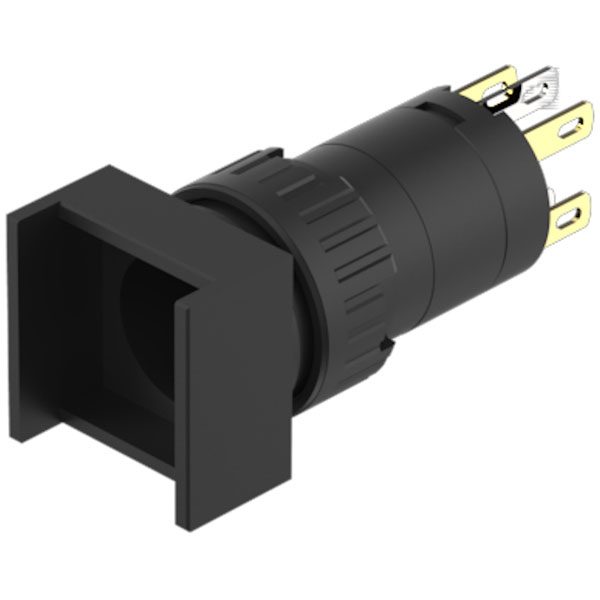

EAO 51-151.022 Illuminated pushbutton mom SA 1NC+1NO ST/PT 18x18 gold/silver

EAO 51-151.022 describes an illuminated pushbutton switch that is momentary action with a configuration of single-pole, single-throw comprising one normally closed (NC) and one normally open (NO) contact. The switch is notable for its compact 18x18 mm form factor, which is an advantageous feature where space considerations are critical. It is designed with a sophisticated gold/silver finish, enhancing contact reliability and durability, potentially reducing maintenance requirements.

Type	Pushbutton
Approbations	Cb (iec 61058-1), Cqc, Csa, Dnv, Enec (en 61058-1), Ul
Climate Resistance	Standard Condition, As Per Din En 60068-2-30 | Changing Condition, As Per Din En 60068-2-14
Conformities	Ce, Ukca, 2011 / 65 / Ec (rohs), 2014 / 30 / Eu (emc), 2014 / 35 / Eu (lvd)
Contacts Concat	1 Nc / 1 No
Contacts Material	Gold
Design	Raised
Electrical Lifetime	50 000 Cycles Of Operation
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	18 Mm X 18 Mm
Front Form	Square
Ip Front Protection	Ip65, According To Din En 60529
Lens Illumination	Illuminated
Max No Modules	1
Mechanical Lifetime	2 Mil. Cycles Of Operation
Operating Temperature	– 25 °c … + 55 °c, Mounted As A Block, Make Sure The Heat Can Escape Freely
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	15 G For 11 Ms, As Per Din / En 60512-4-3, Din / En 60068-2-27 (single Impacts, Semi-sinusoidal)
Switching Action Concat	Momentary
Switching System	Snap-action Switching Element
Terminal Concat	Plug-in terminal, 2.8 X 0.5 Mm
Thermal Current Ith	5 A, According To En / Iec 60947-5-1 | The Maximum Current In Continuous Operation And At Ambient Temperature Not Exceeding The Quoted Maximum Values.
Vibration Resistance	10 G At 10 Hz…1500 Hz, Amplitude 0.75 Mm (sinusoidal), According To Din En 60512-4-4, Din En 60068-2-6
Weight	0.00819
