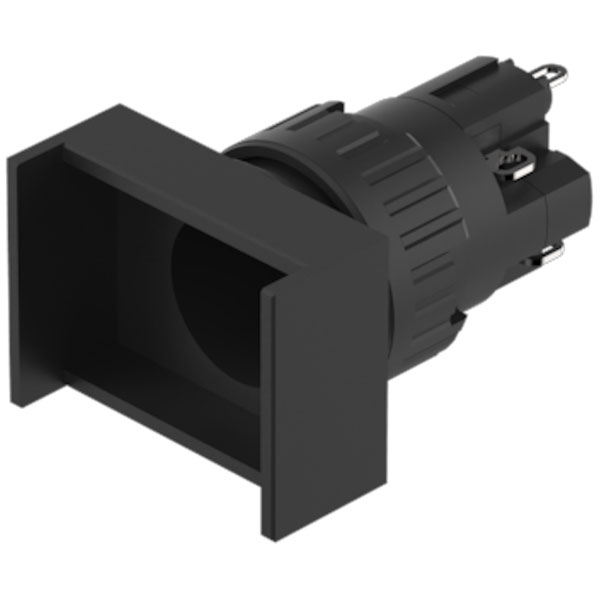

EAO 51-121.0252 Illuminated pushbutton mom SA 1NC+1NO ST 18x24 gold/silver

EAO 51-121.0252 is an illuminated pushbutton with a momentary action configuration, featuring a compact dimension of 18 by 24 millimetres. This device integrates one normally closed (NC) and one normally open (NO) contact, allowing for versatile control applications. The pushbutton boasts a high-quality gold/silver contact surface, which ensures reliable performance and enhances electrical conductivity. Typical applications for this pushbutton include control panels and industrial machinery interfaces.

Type	Pushbutton
Approbations	Cb (iec 61058-1), Cqc, Csa, Dnv, Eac, Enec (en 61058-1), Ul, Vde
Climate Resistance	Standard Condition, As Per Din En 60068-2-30 | Changing Condition, As Per Din En 60068-2-14
Conformities	Ce, Ukca, 2011 / 65 / Ec (rohs), 2014 / 30 / Eu (emc), 2014 / 35 / Eu (lvd)
Contacts Concat	1 Nc / 1 No
Contacts Material	Gold
Design	Raised
Electrical Lifetime	50 000 Cycles Of Operation
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	24 Mm X 18 Mm
Front Form	Rectangular
Ip Front Protection	Ip65, According To Din En 60529
Lens Illumination	Illuminated
Max No Modules	4
Mechanical Lifetime	2 Mil. Cycles Of Operation
Operating Temperature	– 25 °c … + 55 °c, Mounted As A Block, Make Sure The Heat Can Escape Freely
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	15 G For 11 Ms, As Per Din / En 60512-4-3, Din / En 60068-2-27 (single Impacts, Semi-sinusoidal)
Switching Action Concat	Momentary
Switching System	Snap-action Switching Element
Terminal Concat	Soldering terminal
Thermal Current Ith	The Maximum Current In Continuous Operation And At Ambient Temperature Not Exceeding The Quoted Maximum Values. | 3 A
Vibration Resistance	10 G At 10 Hz…1500 Hz, Amplitude 0.75 Mm (sinusoidal), According To Din En 60512-4-4, Din En 60068-2-6
Weight	0.00639
