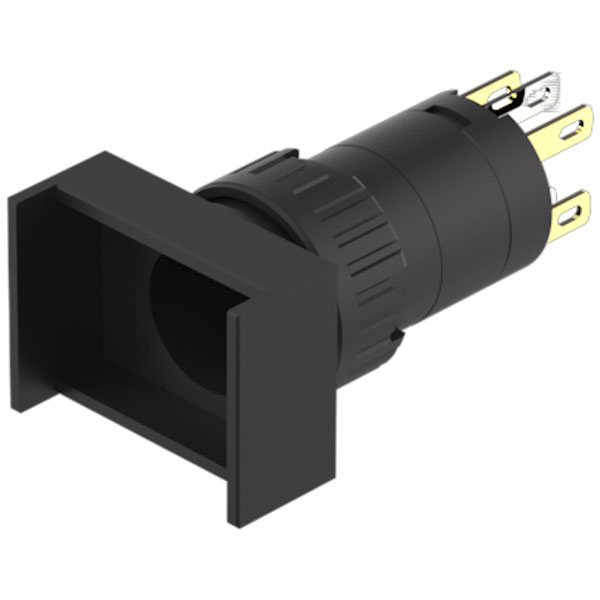

EAO 51-121.022 is an illuminated pushbutton switch notable for its momentary action and its configuration as a single pole with both a normally closed and normally open contact. This component, measuring 18x24 mm, features a metallic finish in gold and silver, enhancing both aesthetic appeal and durability in demanding environments. Designed for precision and reliability, this pushbutton is suitable for applications that require user interface controls in industrial machinery, control panels, and other electronic equipment.
| Type |
Pushbutton |
| Approbations |
Cb (iec 61058-1), Cqc, Csa, Dnv, Enec (en 61058-1), Ul |
| Climate Resistance |
Standard Condition, As Per Din En 60068-2-30 | Changing Condition, As Per Din En 60068-2-14 |
| Conformities |
Ce, Ukca, 2011 / 65 / Ec (rohs), 2014 / 30 / Eu (emc), 2014 / 35 / Eu (lvd) |
| Contacts Concat |
1 Nc / 1 No |
| Contacts Material |
Gold |
| Design |
Raised |
| Electrical Lifetime |
50 000 Cycles Of Operation |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Front Bezel Colour |
Black |
| Front Bezel Material |
Plastic |
| Front Dimension Concat |
24 Mm X 18 Mm |
| Front Form |
Rectangular |
| Ip Front Protection |
Ip65, According To Din En 60529 |
| Lens Illumination |
Illuminated |
| Mechanical Lifetime |
2 Mil. Cycles Of Operation |
| Operating Temperature |
– 25 °c … + 55 °c, Mounted As A Block, Make Sure The Heat Can Escape Freely |
| Output Hsd |
Yes |
| Protection Class |
Ll |
| Shock Resistance |
15 G For 11 Ms, As Per Din / En 60512-4-3, Din / En 60068-2-27 (single Impacts, Semi-sinusoidal) |
| Switching Action Concat |
Momentary |
| Switching System |
Snap-action Switching Element |
| Terminal Concat |
Plug-in terminal, 2.8 X 0.5 Mm |
| Thermal Current Ith |
5 A, According To En / Iec 60947-5-1 | The Maximum Current In Continuous Operation And At Ambient Temperature Not Exceeding The Quoted Maximum Values. |
| Vibration Resistance |
10 G At 10 Hz…1500 Hz, Amplitude 0.75 Mm (sinusoidal), According To Din En 60512-4-4, Din En 60068-2-6 |
| Weight |
0.00843 |
