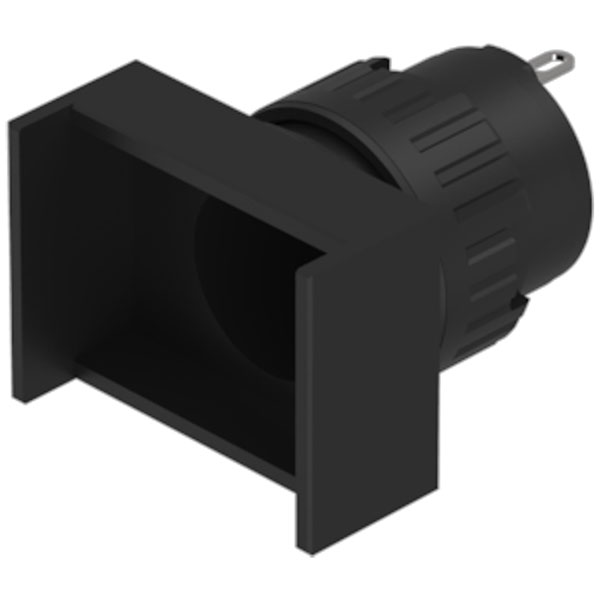

EAO 51-040.005 Indicator ST 18x24

EAOs 51-040.005 Indicator ST 18x24 is a robust and versatile signalling device designed for industrial applications. It features an 18x24 mm rectangular profile, making it suitable for panel installations where space may be limited. The indicator is constructed to meet rigorous standards of durability and is equipped with an LED light source that offers long lifespan and low energy consumption. Typical applications include integration into control panels, machine systems, and process industry equipment where visual status indication is essential.

Type	Indicator
Design	Raised
Erp Ehq Custom Number	8531.8000
Erp Ehq Source Country	Ch
Front Dimension Concat	24 Mm X 18 Mm
Front Form	Rectangular
Ip Front Protection	Ip65, According To Din En 60529
Operating Temperature	– 25 °c … + 55 °c, Mounted As A Block, Make Sure The Heat Can Escape Freely
Output Hsd	Yes
Shock Resistance	15 G For 11 Ms, As Per Din / En 60512-4-3, Din / En 60068-2-27 (single Impacts, Semi-sinusoidal)
Terminal Concat	Soldering terminal, 2.8 X 0.5 Mm
Weight	0.0046
