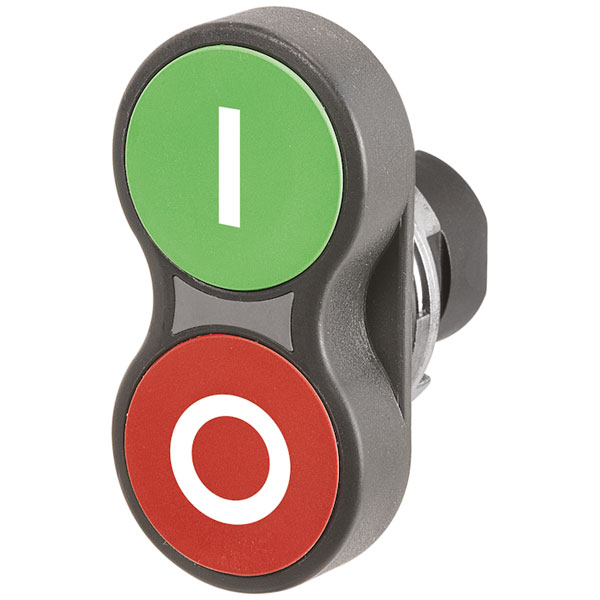

EAO 46-2K31.15T0.000 Twin push-button, I/O, illuminated, red-green

EAO 46-2K31.15T0.000, offers a twin push-button designed for functionality and reliability in control panel applications. This device features dual illumination, with red and green options, to provide clear visual signals for operational status, enhancing user interface clarity in complex systems. The push-button is engineered to integrate seamlessly into industrial environments where precise control and feedback are required, such as in machinery control panels and automation systems.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	58 Mm X 29 Mm
Front Form	Rectangular
Ik Front Protection	Ik03
Lens Colour	Green-red
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	8
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.025
