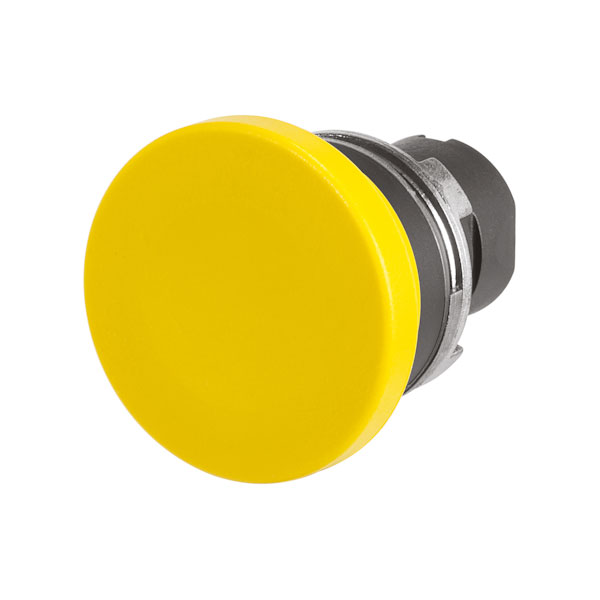

EAO 46-2534.1G40.000 Mushroom push-button Ø 38, maintained, yellow

EAO 46-2534.1G40.000 is a mushroom push-button featuring a 38 mm diameter maintained button and is coloured yellow. This type of push-button is engineered for applications requiring a clear and distinctive interface, often used in safety-related equipment where visibility and accessibility are paramount. The maintained function ensures the button remains in its actuated position until manually reset, making it suitable for emergency stop mechanisms and machinery control panels. Its robust design is tailored for environments where reliability and durability are essential.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 38mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Yellow
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Mushroom-head
Max No Modules	4
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Maintained
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.024
