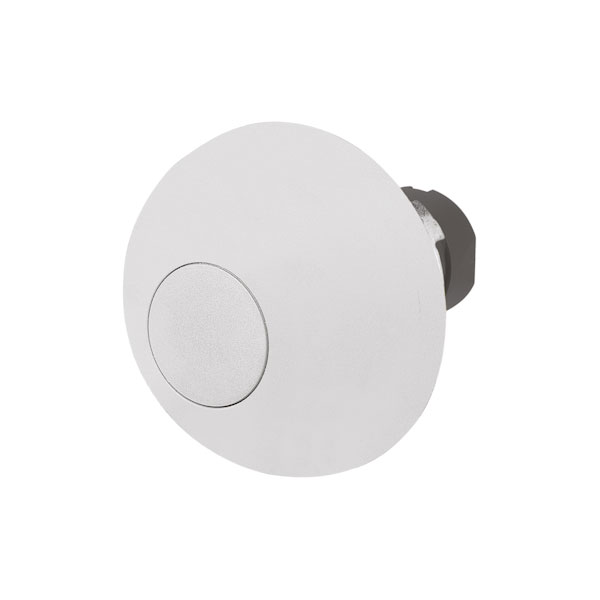

EAO 46-2531.1K80.000 Palm push-button Ø 50, big dome, grey

EAO 46-2531.1K80.000 is a palm push-button designed with a substantial 50 mm grey dome, facilitating easy activation with the palm of the hand. This push-button is engineered for high reliability and is suitable for industrial environments where robust and durable controls are necessary. It finds typical applications in machinery operation panels and emergency stop systems, where quick and straightforward actuation is essential for safety and efficiency. The buttons construction allows it to withstand frequent use and maintain performance.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 50mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Grey
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Mushroom-head
Max No Modules	6
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.038
