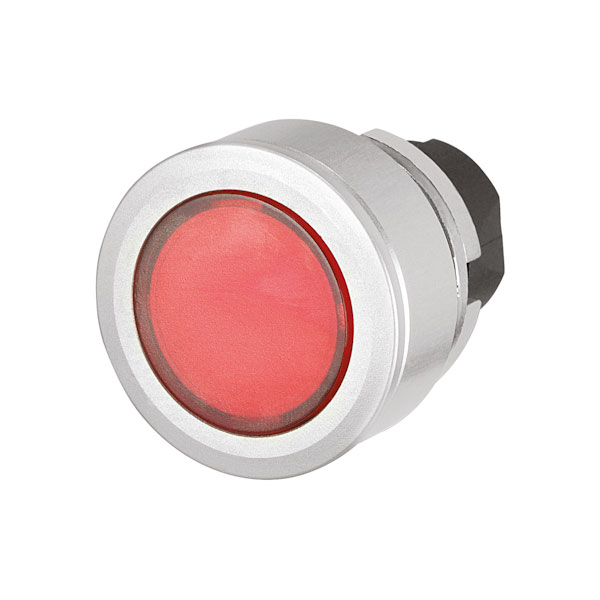

EAO 46-2234.4FE0.000 Push-button, illuminated, flush-mount, maintained, red

EAO 46-2234.4FE0.000 is an illuminated push-button designed for flush-mount applications, with a maintained action mechanism that ensures the button remains in its actuated position until it is manually reset. This model is characterised by its vibrant red actuator, providing clear visual indication, and is particularly suited for environments where immediate and unmistakable notification is critical. Its design is ideal for control panels, industrial machinery interfaces, and safety applications, where high visibility and reliable operation are needed.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Flush
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Silver
Front Bezel Material	Aluminium
Front Dimension Concat	Ø 35mm
Front Form	Round
Ik Front Protection	Ik04
Lens Colour	Red
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	4
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 30mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	L
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Maintained
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.035
