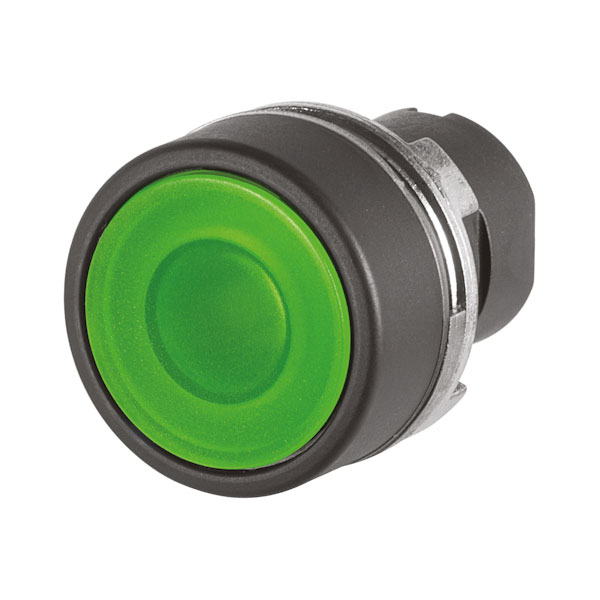

EAO 46-2234.11H0.000 Push-button, illuminated, maintained, green

EAO 46-2234.11H0.000 push-button is a high-quality, illuminated, maintained contact switch with a green actuator. This device is engineered to provide reliable operation within various industrial and commercial applications, maintaining its position after being pressed to ensure the continuity of a particular function or signal. The illumination feature enhances visibility in low-light conditions, making it particularly useful in control panels and machinery interfaces where operators require clear visual feedback on status changes. Commonly employed in environments such as manufacturing.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Green
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	4
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Maintained
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.019
