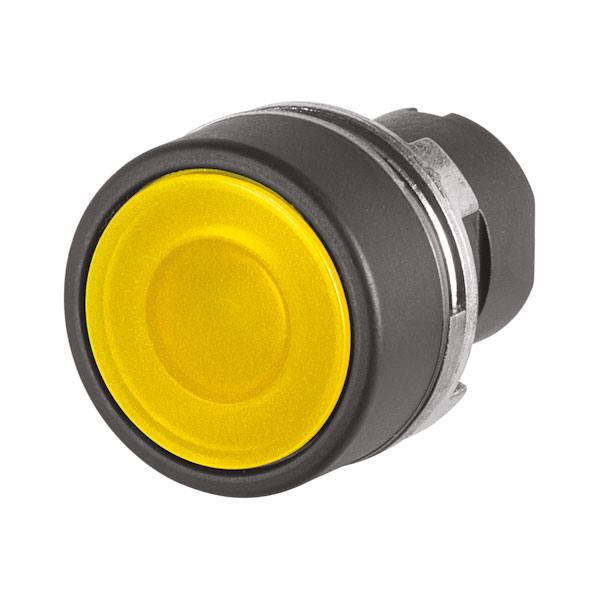

EAO 46-2234.11G0.000 Push-button, illuminated, maintained, yellow

EAOs 46-2234.11G0.000 is an illuminated push-button with a maintained mechanism and is distinguished by its yellow colour, making it suitable for clear status indication. This push-button is designed for use in environments where reliable operation and visibility are critical, such as in industrial control panels and human-machine interface systems. The maintained action ensures the button stays in its actuated position without the need for constant pressure, which is ideal for applications requiring persistent signal or system modes.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Yellow
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	4
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Maintained
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.019
