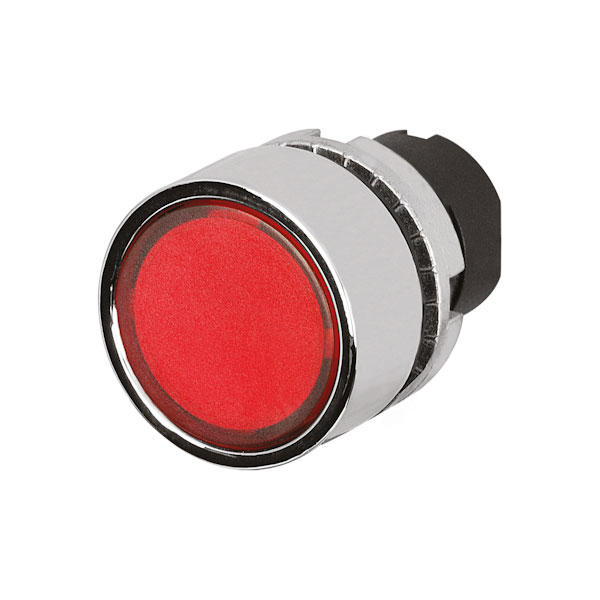

EAO 46-2231.31E0.000 Guarded push-button, illuminated, red, metal

EAO 46-2231.31E0.000 is a robust, guarded push-button designed for industrial applications requiring high durability and reliability. This push-button features a metallic construction ensuring both longevity and resistance to harsh environments, while its illuminated red cap enhances visibility in dim conditions. The guard around the push-button provides additional protection against accidental activation, making it particularly suitable for use in control panels, machinery operation, and safety systems where inadvertent engagement could lead to operational or safety issues.

Type	Pushbutton
IP Rating	Ip65
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Silver
Front Bezel Material	Metal
Front Dimension Concat	Ø 29,5mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Red
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	6
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.033
