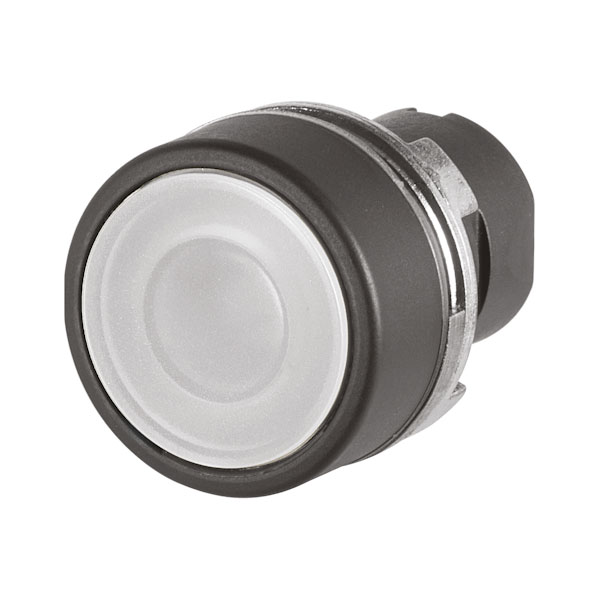

EAO 46-2231.11N0.000 Guarded push-button, illuminated, white

EAO 46-2231.11N0.000 is a guarded push-button switch, designed with an illuminated white actuator, providing enhanced visibility in low-light conditions. This component is engineered with a robust housing to protect against accidental activation, making it suitable for environments where safety and precision are paramount. Its illumination feature is particularly useful in applications requiring fault indicators or status alerts in control panels. Commonly utilised in industrial settings, transportation equipment, and process control systems, this push-button ensures reliable operation.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	White
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	8
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.019
