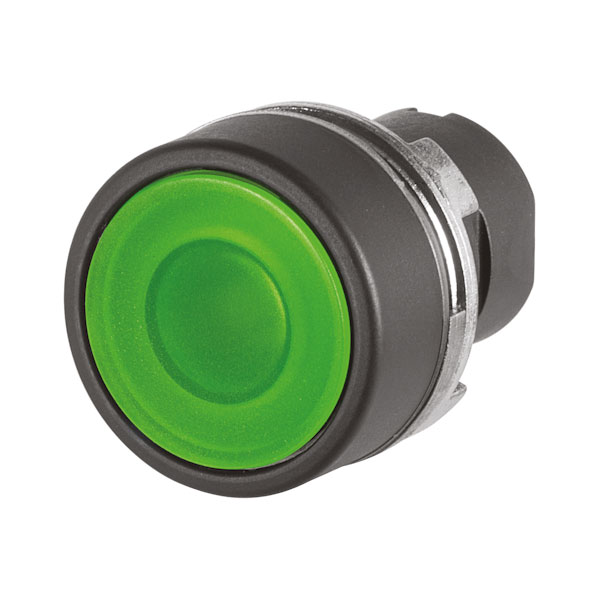

EAO 46-2231.11H0.000 Guarded push-button, illuminated, green

EAO 46-2231.11H0.000 is a guarded push-button featuring an illuminated design with a green actuator, ideal for enhancing visibility in control systems. This component is engineered with precision to ensure reliable operation and longevity, featuring robust construction that meets rigorous industry standards for safety and durability. The green illumination is energy-efficient and serves to provide a clear visual indication, making it suitable for use in environments where immediate and unambiguous alerts are necessary. Typical applications include industrial control panels.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Green
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	8
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.019
