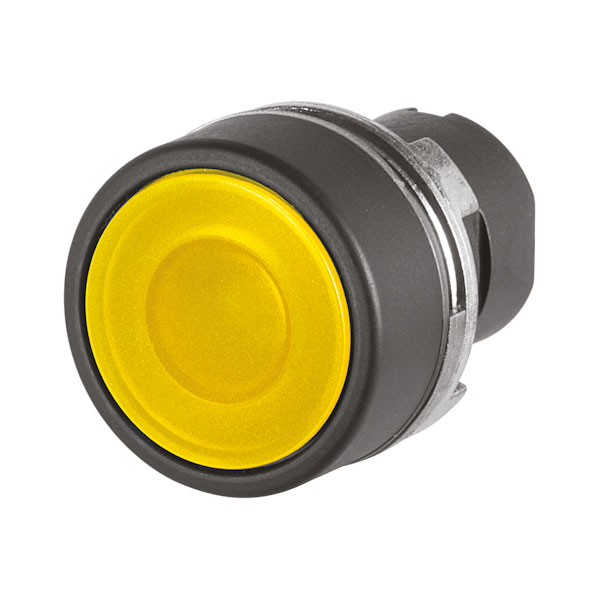

EAO 46-2231.11G0.000 Guarded push-button, illuminated, yellow

EAO 46-2231.11G0.000 is an illuminated, yellow, guarded push-button, designed with precision for reliability in a variety of engineering applications. This component features a robust construction with a protective guard to prevent accidental activation, ensuring it is suited for both industrial and commercial environments. The push-button is illuminated to enhance visibility and facilitate operations in low-light conditions, making it an ideal choice for control panels and interface systems. The devices yellow colour can be utilised in safety-critical applications.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Yellow
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	8
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.019
