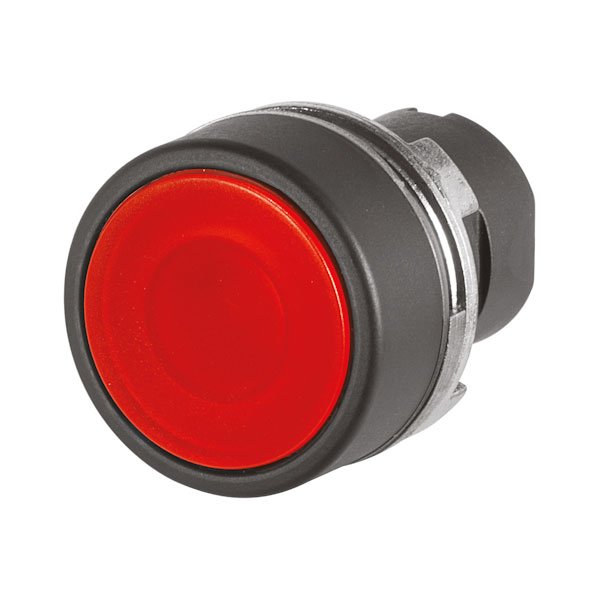

EAO 46-2231.11E0.000 Guarded push-button, illuminated, red

EAOs 46-2231.11E0.000 is a precision-engineered, guarded push-button, designed for reliability in industrial and commercial applications. This component features an illuminated button with a red lens, ensuring visibility in environments where low light conditions may prevail. Its robust construction and safeguarded design make it ideal for usage in control panels, machinery interfaces, and safety-critical systems where accidental activation must be prevented. The push-button integrates seamlessly into systems requiring clear visual indications of status or operation.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Red
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	8
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.023
