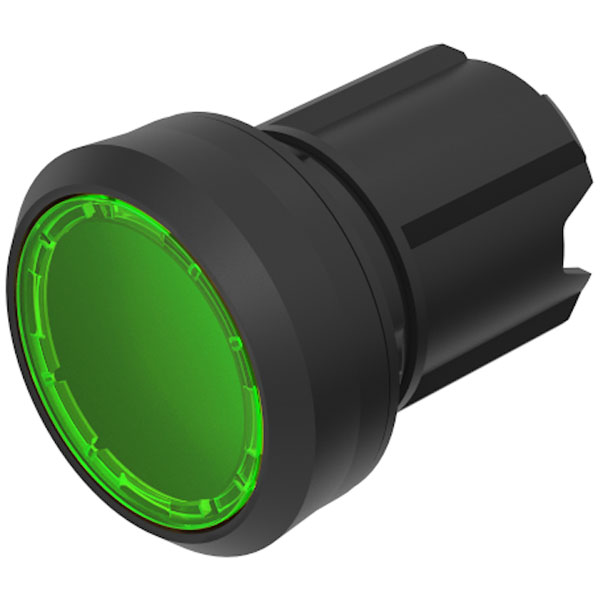

EAO 45-2234.11H0.000 Illuminated pushbutton actuator green transparent lens

EAO 45-2234.11H0.000 is an illuminated pushbutton actuator featuring a green transparent lens which provides distinct visual indication of operation status. This actuator is designed for use in electrical control panels, providing tactile feedback and ensuring reliable performance in high-stress environments. The transparent lens is constructed to enhance visibility of the internal light source, making it suitable for both low-light conditions and applications requiring quick visual identification of system states. Commonly employed in industrial automation systems.

Type	Pushbutton actuator
IP Rating	Ip66, Ip67, Ip69k
Climate Resistance	During Operation According To Iec 60721: 3k6, 3c3, 3s2, 3m6
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	Cn
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29,5mm
Front Form	Round
Illumination Colour Concat	Green
Lens Colour	Green
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Flush
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 70°C
Output Hsd	Yes
Shock Resistance	According To Iec 60068-2-27: Sinusoidal Half-wave 50 G / 11 Ms
Switching Action Concat	Maintained
Switching System	Slow-make Switching Element
Vibration Resistance	According To Iec 60068-2-6: 20 … 500 Hz: 5 G
Weight	0.02
