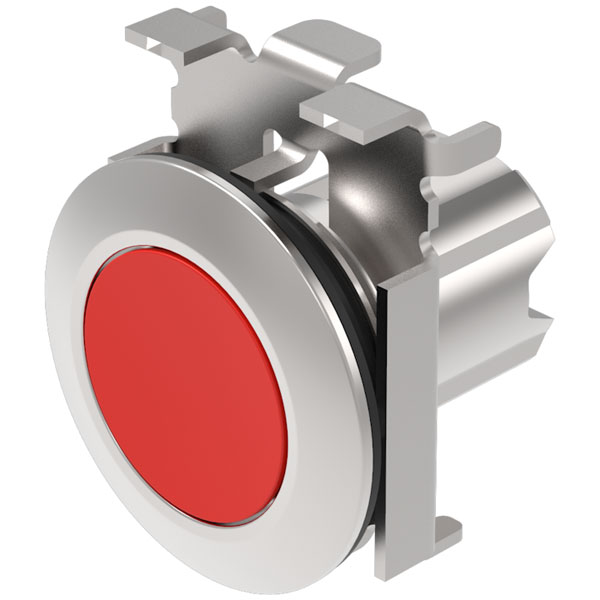

EAO 45-2131.4F20.000 Pushbutton actuator red lens flush mount mom. front metal

EAO 45-2131.4F20.000 is a pushbutton actuator designed for industrial applications requiring durability and precision. This particular model features a red lens and is intended for flush mounting, offering a neat integration into control panels. It operates as a momentary switch, meaning the circuit is engaged only while the actuator is pressed, thus ensuring immediate operator feedback and enhancing operational safety. The front of the actuator is constructed from metal, providing robustness suited to demanding environments.

Type	Pushbutton actuator
Contact Configuration	SPNO
Switch Function	1 breaker
Mounting	Panel
Panel Cutout Dimensions	30
Climate Resistance	During Operation According To Iec 60721: 3k6, 3c3, 3s2, 3m6
Design	Flush
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	Cn
Front Bezel Colour	Sand Grey
Front Bezel Material	Metal
Front Dimension Concat	Ø 38mm
Front Form	Round
Ip Front Protection	Ip66, Ip67, Ip69k
Lens Colour	Red
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Flush
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 30mm
Operating Temperature	– 25 °c … + 70°C
Output Hsd	Yes
Shock Resistance	According To Iec 60068-2-27: Sinusoidal Half-wave 50 G / 11 Ms
Switching Action Concat	Momentary
Switching System	Slow-make Switching Element
Vibration Resistance	According To Iec 60068-2-6: 20 … 500 Hz: 5 G
Weight	0.074
