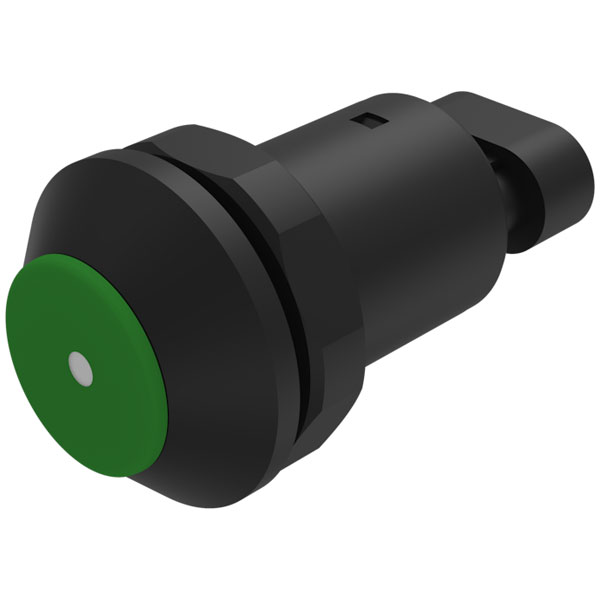

EAO 09-RS.1203.5022.M000 Series 09 Rugged Outdoor Switch L.Green with Red Illum.

EAO 09-RS.1203.5022.M000 is a robust switch designed for harsh outdoor environments, featuring a light green housing complemented by red illumination for clear visibility in various lighting conditions. This Series 09 switch is engineered to withstand extreme temperatures, moisture, and dust ingress, making it ideal for use in applications such as public information terminals, access control systems, and transportation equipment. Its rugged construction and reliable performance ensure consistent operation in challenging settings, while the aesthetic design provides seamless integration.

Type	Pushbutton
Contact Configuration	SPDT NO/NC
Mounting	Panel
Illumination	Green
Panel Cutout Dimensions	30
Approbations	Emc (en Iso 13766-1:2018) , Emc (en Iso 14982:2009)
Climate Resistance	100 Cycles (- 20 °c ... + 100 °c), With 25min At High Temperature, 20 Min At Low Temperature Level Per Cycle
Conformities	Ce
Contacts Concat	1 No
Contacts Material	Rhodium/silver
Design	Raised
Electrical Lifetime	1 Mil. Cycles Of Operation
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Bezel Shape	Raised
Front Dimension Concat	Ø 39mm
Front Form	Round
Illumination Colour Concat	Red
Ip Front Protection	Ip67 (iso 20653)
Lens Colour	Light Green
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Concave
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 30mm
Operating Concat	24 V +4
Operating Temperature	– 20 °c … + 100 °c (din En 60068-2-64)
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Dc (led) +4
Output Hsd	Yes
Switching Action Concat	Momentary
Symbol	No Symbol
Terminal Concat	1.5 Series Amp Superseal 3 Pin Connector
Thermal Current Ith	0.2 A
Vibration Resistance	Vibration Tl80101 (2006-10) Chapter 4.1.4 Test Severity Level 3, Test Conditions According Din En 60068-2-64 Test Duration 2 Hours Per Spatial Axis
Weight	0.04
