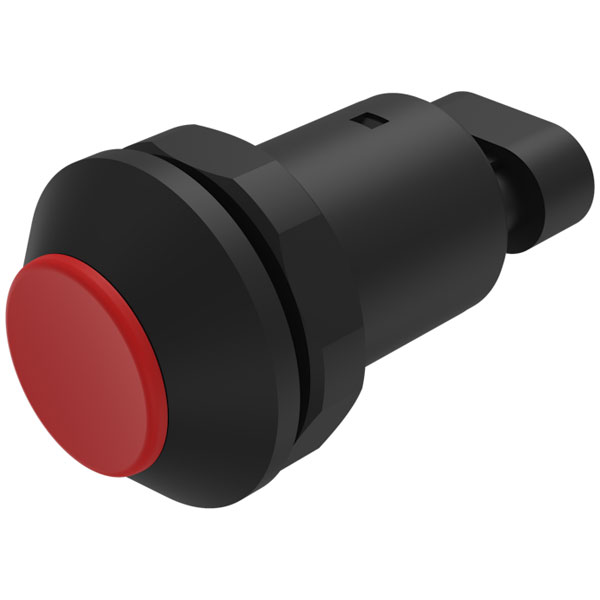

EAO 09-RS.1101.2000.M000 Series 09 Rugged Outdoor Switch, Red

EAO 09-RS.1101.2000.M000 Series 09 Rugged Outdoor Switch, Red, is engineered for use in demanding environmental conditions, offering robust performance and high durability. Designed with a resilient housing that is both dust-tight and water-resistant, it meets IP67 protection standards, making it well-suited for outdoor installations and harsh environments. The switch features a reliable mechanical operation and is capable of withstanding significant wear, ensuring longevity and reliable actuation in high-usage scenarios.

Type	Pushbutton
Contact Configuration	SPNO
Switch Function	N/A
Current Rating	N/A
Mounting	Panel
Illumination	N/A
Panel Cutout Dimensions	N/A
Approbations	Emc (en Iso 13766-1:2018) , Emc (en Iso 14982:2009)
Climate Resistance	100 Cycles (- 20 °c ... + 100 °c), With 25min At High Temperature, 20 Min At Low Temperature Level Per Cycle
Conformities	Ce
Contacts Concat	1 No
Contacts Material	Rhodium/silver
Design	Raised
Electrical Lifetime	1 Mil. Cycles Of Operation
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Bezel Shape	Raised
Front Dimension Concat	Ø 39mm
Front Form	Round
Ip Front Protection	Ip67 (iso 20653)
Lens Colour	Red
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Concave
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 30mm
Operating Concat	12 - 48 V
Operating Temperature	– 20 °c … + 100 °c (din En 60068-2-64)
Operating Voltage 1 Concat	12 - 48 V
Operating Voltage Concat	12 - 48 V Dc
Output Hsd	Yes
Switching Action Concat	Momentary
Symbol	No Symbol
Terminal Concat	1.5 Series Amp Superseal 3 Pin Connector
Thermal Current Ith	0.5 A
Vibration Resistance	Vibration Tl80101 (2006-10) Chapter 4.1.4 Test Severity Level 3, Test Conditions According Din En 60068-2-64 Test Duration 2 Hours Per Spatial Axis
Weight	0.04
