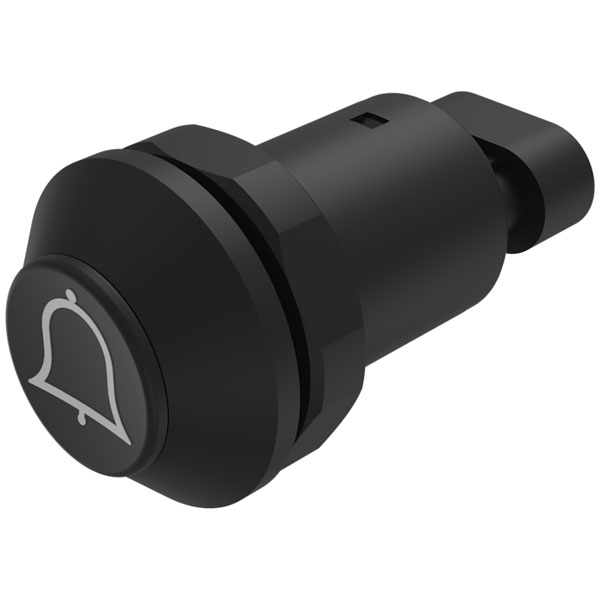

EAO 09-RS.1101.0900.M005 refers to a robust Series 09 rugged outdoor switch, finished in black and distinguished by a bell symbol. This device is engineered to endure challenging environmental conditions, making it suitable for various outdoor applications. Constructed with durable materials, the switch ensures reliable operation in harsh climates, providing water and dust resistance levels that comply with IP67 standards. This rugged switch is typically utilised in transportation systems, industrial control panels, and public transportation systems.
| Type |
Pushbutton |
| Contact Configuration |
SPDT NO/NC |
| Mounting |
Panel |
| Panel Cutout Dimensions |
30 |
| Approbations |
Emc (en Iso 13766-1:2018) , Emc (en Iso 14982:2009) |
| Climate Resistance |
100 Cycles (- 20 °c ... + 100 °c), With 25min At High Temperature, 20 Min At Low Temperature Level Per Cycle |
| Conformities |
Ce |
| Contacts Concat |
1 No |
| Contacts Material |
Rhodium/silver |
| Design |
Raised |
| Electrical Lifetime |
1 Mil. Cycles Of Operation |
| Front Bezel Colour |
Black |
| Front Bezel Material |
Plastic |
| Front Bezel Shape |
Raised |
| Front Dimension Concat |
Ø 39mm |
| Front Form |
Round |
| Ip Front Protection |
Ip67 (iso 20653) |
| Lens Colour |
Black |
| Lens Illumination |
Non Illuminated |
| Lens Material |
Plastic |
| Lens Shape |
Concave |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 30mm |
| Operating Concat |
22 - 48 V |
| Operating Temperature |
– 20 °c … + 100 °c (din En 60068-2-64) |
| Operating Voltage 1 Concat |
22 - 48 V |
| Operating Voltage Concat |
22 - 48 V Dc |
| Output Hsd |
Yes |
| Switching Action Concat |
Momentary |
| Symbol |
Bell |
| Terminal Concat |
1.5 Series Amp Superseal 3 Pin Connector |
| Thermal Current Ith |
0.5 A |
| Vibration Resistance |
Vibration Tl80101 (2006-10) Chapter 4.1.4 Test Severity Level 3, Test Conditions According Din En 60068-2-64 Test Duration 2 Hours Per Spatial Axis |
| Weight |
0.04 |
