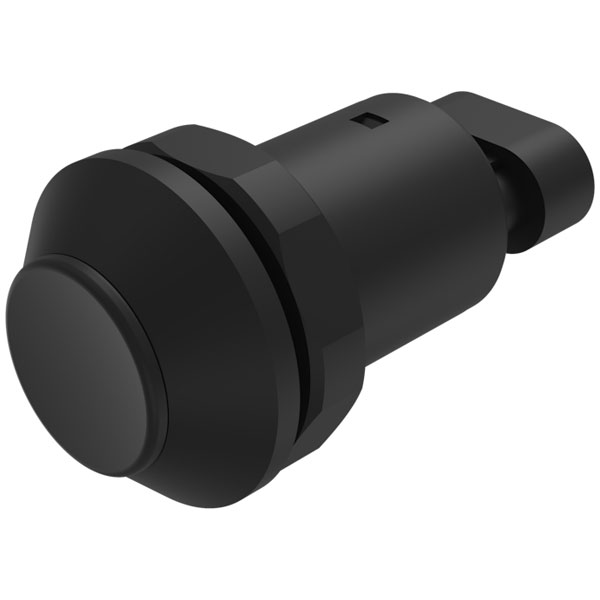

EAO 09-RS.1101.0000.M000 Series 09 Rugged Outdoor Switch, Black

EAO 09-RS.1101.0000.M000 Series 09 rugged outdoor switch is designed for use in demanding environments. This high-performance switch is constructed to withstand harsh weather conditions and is IP67 rated for dust and water resistance, ensuring reliable operation in outdoor settings. Its robust construction is complemented by a tactile feedback mechanism, which provides a satisfying response for operators in applications requiring precision. The switch is particularly suited for use in transportation systems, heavy machinery control panels, and other industrial equipment.

Type	Pushbutton
Contact Configuration	SPDT NO/NC
Mounting	Panel
Panel Cutout Dimensions	30
Approbations	Emc (en Iso 13766-1:2018) , Emc (en Iso 14982:2009)
Climate Resistance	100 Cycles (- 20 °c ... + 100 °c), With 25min At High Temperature, 20 Min At Low Temperature Level Per Cycle
Conformities	Ce
Contacts Concat	1 No
Contacts Material	Rhodium/silver
Design	Raised
Electrical Lifetime	1 Mil. Cycles Of Operation
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Bezel Shape	Raised
Front Dimension Concat	Ø 39mm
Front Form	Round
Ip Front Protection	Ip67 (iso 20653)
Lens Colour	Black
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Concave
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 30mm
Operating Concat	12 - 48 V
Operating Temperature	– 20 °c … + 100 °c (din En 60068-2-64)
Operating Voltage 1 Concat	12 - 48 V
Operating Voltage Concat	12 - 48 V Dc
Output Hsd	Yes
Switching Action Concat	Momentary
Symbol	No Symbol
Terminal Concat	1.5 Series Amp Superseal 3 Pin Connector
Thermal Current Ith	0.5 A
Vibration Resistance	Vibration Tl80101 (2006-10) Chapter 4.1.4 Test Severity Level 3, Test Conditions According Din En 60068-2-64 Test Duration 2 Hours Per Spatial Axis
Weight	0.04
