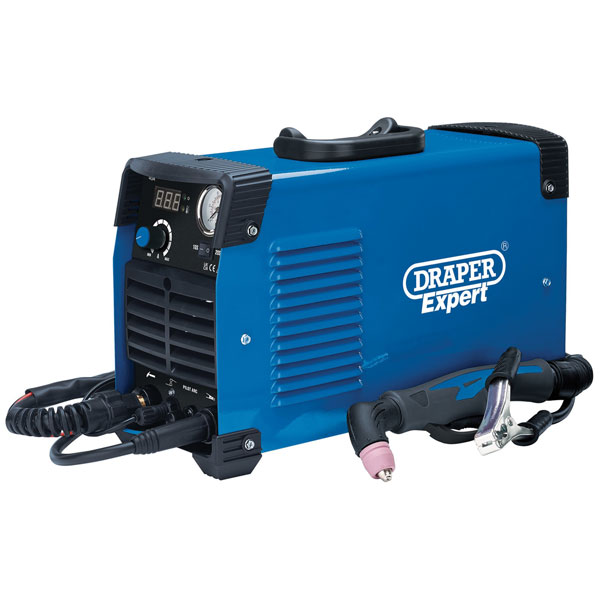

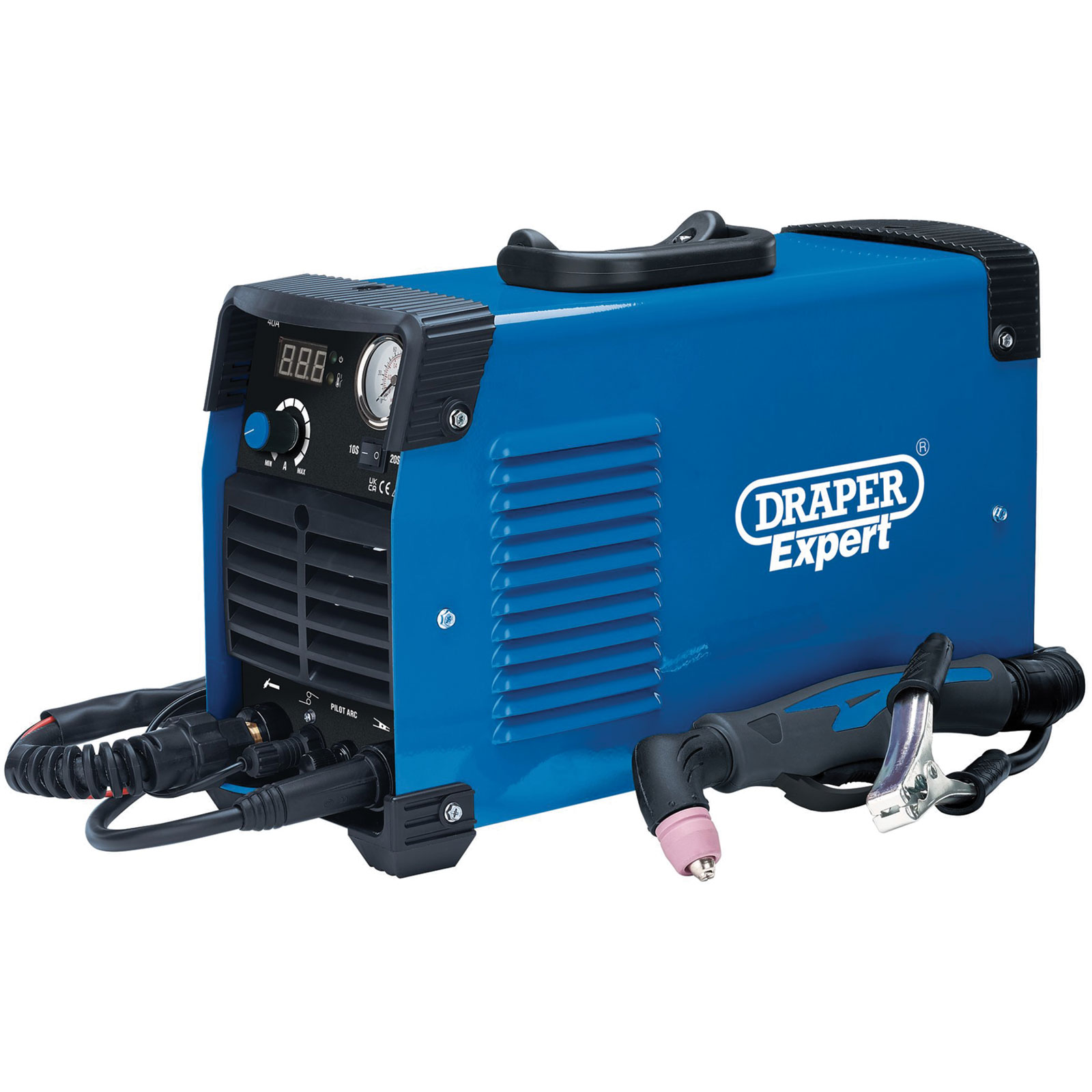

Draper Expert 70066 High Frequency Plasma Cutter, 40A

This high frequency ignition plasma cutter has advanced IGBT technology with digital meter.

It has a pilot arc function that ensures stability and a fast, strong and smooth cut.

This efficient machine is suitable for cutting through stainless steel, aluminium and other metals up to a thickness of 12mm.

Fitted with thermal overload protection to ensure maximum durability.

The machine is robust, lightweight and portable, fitted with a carry handle.

• Amperage range: 20-40A
• Power supply: 230V
• Plug Fitted: NO (32A PLUG REQUIRED)
• Max. cutting thickness: 12mm
• PSI: 72.5psi
• Duty cycle: 60% @40A / 100% @25A
• Dimensions 426 x 160 x 285mm
• Weight (net): 9.4kg
• IGBT Inverter Technology: YES
• Integrated Gas Regulator: YES
• High Frequency Pilot arc Start: YES
• Thermal overload protection: YES

Type	Plasma Cutter
Voltage	230V AC
Current	40A
Amperage range	20-40A
Dimension	426 x 160 x 285mm
Dimensions	426 x 160 x 285mm
