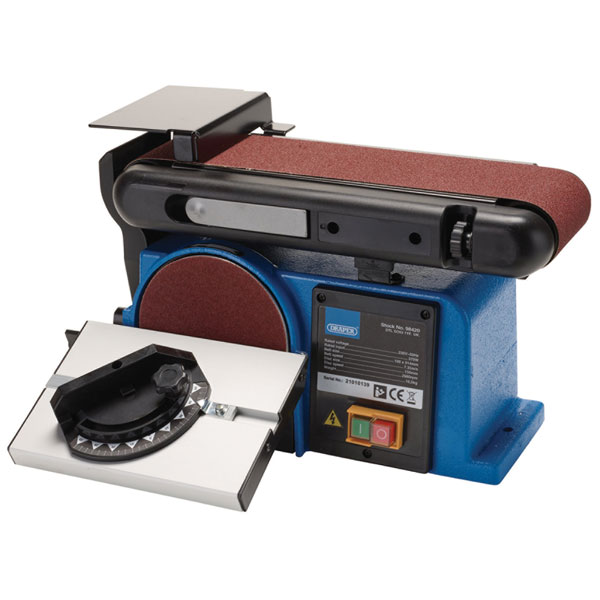

Draper 98420 230V Belt and Disc Sander, 370W Manufacturers P/N - 98420

This highly robust compact belt and disc sander with a cast iron base is powered by a 370W induction motor.

The 100mm sanding belt can be positioned horizontally or vertically.

There is a fast-tracking knob to adjust the front wheel of the sander and a quick release belt tensioning lever.

The belts can be changed quickly and easily.

The 150mm diameter disc is provided with its own worktable and adjustable mitre gauge.

The disc worktable is made from diecast aluminium and can pivot from 0-45 degrees for accurate angle sanding.

To help keep workspaces clean and safe, there is a built-in dust extraction port.

For safety, there is a no-volt release magnetic switch.

The machine is designed and manufactured for sanding wood and similar materials and should not be used to abrade or grind metal.

Supplied with sanding belt and disc.

• Power: 370W
• No load speed (disc): 2980rpm
• Belt speed: 7.35m/s
• Belt size: 100 x 914mm
• Disc diameter: 150mm
• Disc table size: 230 x 160mm
• Tilt: Disc 0-45°
• Belt 0-90°
• Dimensions: 483 x 356 x 292mm
• Weight: 16.5kg

Dimensions	483 x 356 x 292mm
