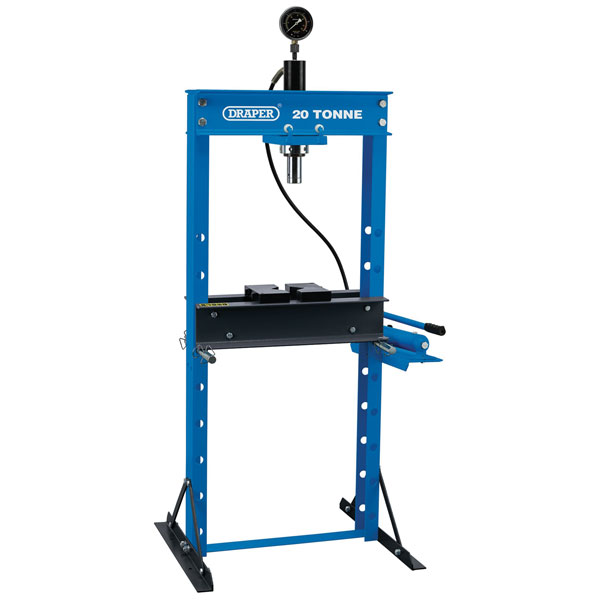

Draper 70540 Floor Press, 20 Tonne Manufacturers P/N - 70540

There are nine adjustable table heights: 256, 366, 486, 606, 726, 846, 966, 1086 and 1106mm.

The glycerine liquid filled gauge provides increased accuracy and prolonged service life.

An anti-kink coil is fitted to each end of the flexible hose for increased protection.

Fitted with a safety valve to protect the press from overloading.

Complete with two flat V-shaped blocks.

Fully tested and certified for safe, reliable operation.

• Capacity: 20 tonnes
• Frame Depth: 100mm
• Frame Height: 1515mm
• Frame width: 740mm
• Max Table to Ram Height: 998mm (max.)
• Min Table to Ram Height: 28mm (max.)
• Overall height: 1785mm
• Ram stroke: 185mm
• Ram Type: Sliding
• Table Settings: 9
• Working table width: 550mm
• Weight: 113kg
