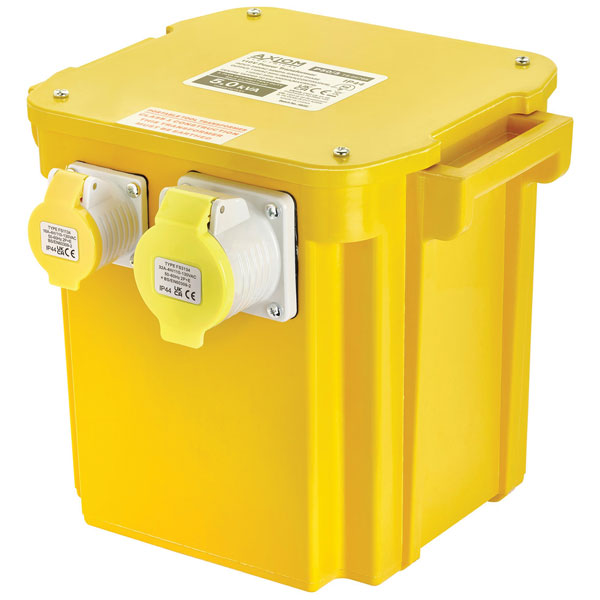

Draper 28838 110V Portable Transformer, 5kVA Manufacturers P/N - 28838

This portable transformer is designed step down the voltage from 230V to 110V CTE supply.

It is intended for the intermittent running of 110V power tools and the continuous running of site lighting within the specified capacity.

The transformer safely isolates the tool from the mains supply, which helps to prevent overheating.

It is constructed with a durable GRP casing and is insulated and IP44 rated to withstand normal site usage and harsh weather conditions.

Socket covers are included to protect the ports when they are not in use, keeping them clean and secure.

The transformer is overload protected with an input thermal device and is centre tapped to earth.

It is fitted with a 13A plug and a 1m rubber cable.

Includes 2 x 16A/110V and 1 x 32A outlets.

• Rated voltage: 5,000kvA
• Input voltage: 230V
• Output: 110V
• Continuous rating: 2.8kVA
• Intermittent rating: 5.0kVA
• Duty cycle: 5 mins on, 15 mins off
• Cable: 1m
• Weight: 30.5kg

Type	Portable Transformer
Primary Voltage Rating	230V
Secondary Voltage Rating	110V
Power Rating	5kVA
Number of Phases	1
Output Current	16A, 32A
Output Sockets	2 x 16A, 1 x 32A
