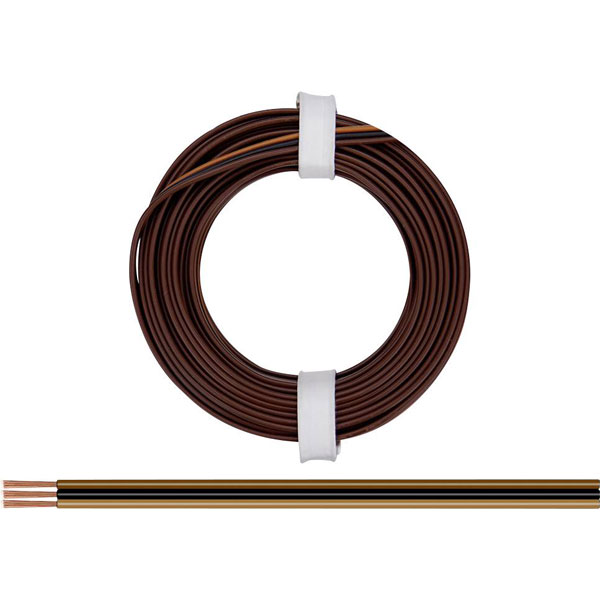

Donau 318-818 Strand 3x0.14mm² 5m Plastic Insulated DarkBrown

Donau Elektronik manufactures the 318-818 braid wire, featuring a three-strand configuration of 0.14 mm² each in light brown, black, and dark brown, and a length of 5 metres. It is typically used for low voltage internal and switchboard wiring. This product is ideal for applications requiring precise and reliable electrical connections.

Colour	Light brown, Black, Dark brown
AWG	Not Specified
Conductor Cross Section	0.14mm²
Number of Cores	3
Conductor Stranding	Not Specified
Insulation Material	Copper wire, blank
Length	5m
Type	Strand
Cable Diameter	2.70mm
Core layout	3 x 18 x 0.10mm
Halogen-free	No
Max. temperature range (fixed installation)	85°C
Max. temperature range (flexible installation)	85°C
Min. temperature range (fixed installation)	-40°C
Min. temperature range (flexible installation)	-5°C
Nominal Voltage	500V
Packaged	Yes
Sold by Metre	No
Test Voltage	1200V
