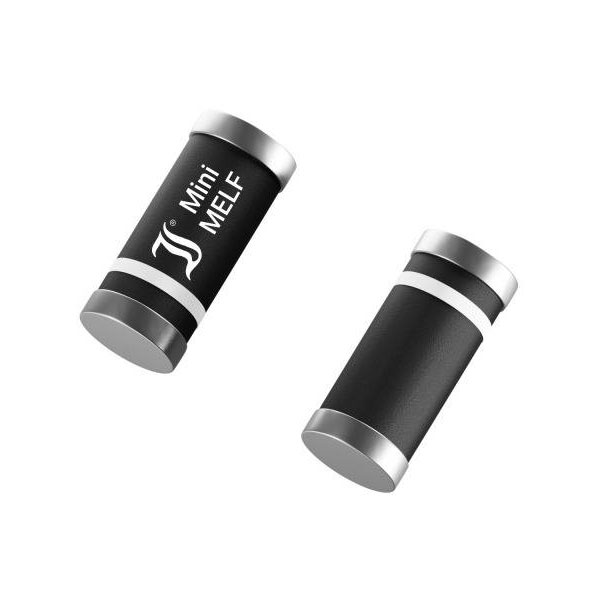

Diotec SGL34-90 Schottky diode 90V DO-213AA axially leaded semiconductor

Diotec SGL34-90 is a Schottky diode designed for applications requiring efficient current rectification and voltage blocking up to 90 volts. This diode utilises the low forward voltage drop characteristic of Schottky technology, housed in a DO-213AA package, making it suitable for high-frequency applications due to its fast switching capabilities. Engineers frequently apply these diodes in power management systems, switching power supplies, and voltage protection circuits where minimising energy loss is essential. Its construction as an axially leaded semiconductor allows for easy integration into a variety of circuit configurations, ensuring reliable performance within its specified operational parameters. The SGL34-90 exemplifies typical properties of a p-n junction diode with optimised efficiency for contemporary electronic designs.

Type	Schottky diode
Content	1
Enclosure	DO 213AA
Forward current I(F)	0.50A
Forward Voltage U(F)	0.65V
Mounting Type	Surface-mount
Operating temperature (max.)	150°C
Peak forward surge Current I(FSM)	10A
Product Type	Schottky diode
Reverse leakage Current I(r)	500µA
Reverse Voltage U(R)	90V
