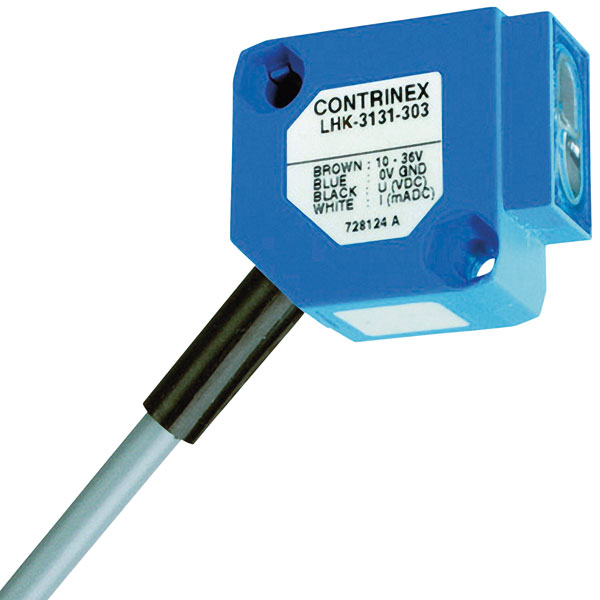

Diffuse Photoelectric Sensors Cubic

Contrinex Brand: Contrinex

These cubic photoelectic switches are of the diffuse sensor type and use background suppression to improve detection for difficult targets such as small, fast-moving parts on conveyors/automated machinery or targets against light backgrounds.

  • Eliminates false triggering
  • Excellent suppression of light-colored backgrounds
  • Insensitive to the target size, colour, shape or surface finish
  • Stable, accurate detection
Description Image Product Buy Pricing (Ex VAT) Output Type IP Rating Maximum Temperature Min. temperature
Contrinex 620 100 474
Contrinex 620 100 474
Standard range
Order code: 50-9930
MPN: 620 100 474

Despatched within 4 working days - 3 in stock
1+ £95.98
Price per unit Ex VAT 		light-ON Retroreflective photo sensor IP67 +55°C -25°C
Contrinex 620 100 476
Contrinex 620 100 476
Standard range
Order code: 50-9931
MPN: 620 600 005

Despatched within 4 working days - 5 in stock
1+ £86.99
Price per unit Ex VAT 		Retroreflective photo sensor IP67 +55°C -25°C
Order code50-993050-993150-9932
PolarityPNPPNPNPN
Outputslight-ONlight-ONlight-ON
Termination2m CableS8 3-pin connectorS8 3-pin connector
Switching distance (mm)15 to 20015 to 20015 to 200
Hysteresis≤5%sn≤5%sn≤5%sn
Standard target100 x 100 white100 x 100 white100 x 100 white
EmitterRed LED 660nmRed LED 660nmRed LED 660nm
Operating voltage10 to 36V DC10 to 36V DC10 to 36V DC
Switching frequency≤500Hz≤500Hz≤500Hz
Switching time≤1ms≤1ms≤1ms
Modulation frequency7.5kHz7.5kHz7.5kHz
Ambient light max. halogen5000 lux5000 lux5000 lux
Ambient light max. solar10,000 lux10,000 lux10,000 lux
Ambient temperature–25°C to + 55°C–25°C to + 55°C–25°C to + 55°C
Protection typeIP67IP67IP67
Dimensions L x W x H (mm)30 x 30 x 1330 x 30 x 1330 x 30 x 13
