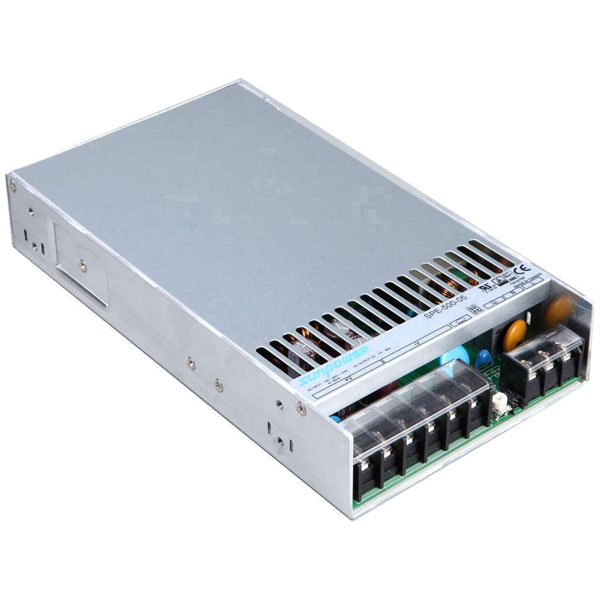

Dehner Elektronik SPE 500-12 SMPSU 12V 41.7A 500W Low Profile for 1U Racks

Dehner Elektronik
Order Code:

02-4690

Brand: Dehner Elektronik MPN: SPE 500-12 (12V 41.7A) EAN-13: 4251125201025
Qty Unit Price (Ex VAT)
1+ £198.21
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
9 available to back orderBack-order availability date - 18/12/2025

Dehner Elektronik's SPE 500-12 (12V 41.7A) is a 500 W switch-mode power supply unit designed for PCB mounting with solder lugs. Offering reliable 12 V DC output at 41.7 A, it is ideal for equipping PCB power supply systems. This unit is suitable for various circuit board applications requiring stable power provision.
Connection Screw terminal
Dim (L x W x H) 235 x 127 x 41 mm
Height 41mm
Input voltage (max.) 264V AC
Length 235mm
Max. operating temperature (derating) 70°C
Max. output current 41.7A
Max. temperature 85°C
Min. input voltage 85V AC
Min. temperature -40°C
Misc Attribute 2 closed
MTBF 179000h
Number of Outputs 1
Output current (max.) - rounded 41.7A
Output voltage (max.) 12V DC
Output voltage (min.) 12V DC
PFC Yes
Power 500W
PSU features Regulated
Type SMPSU
Width 127mm
