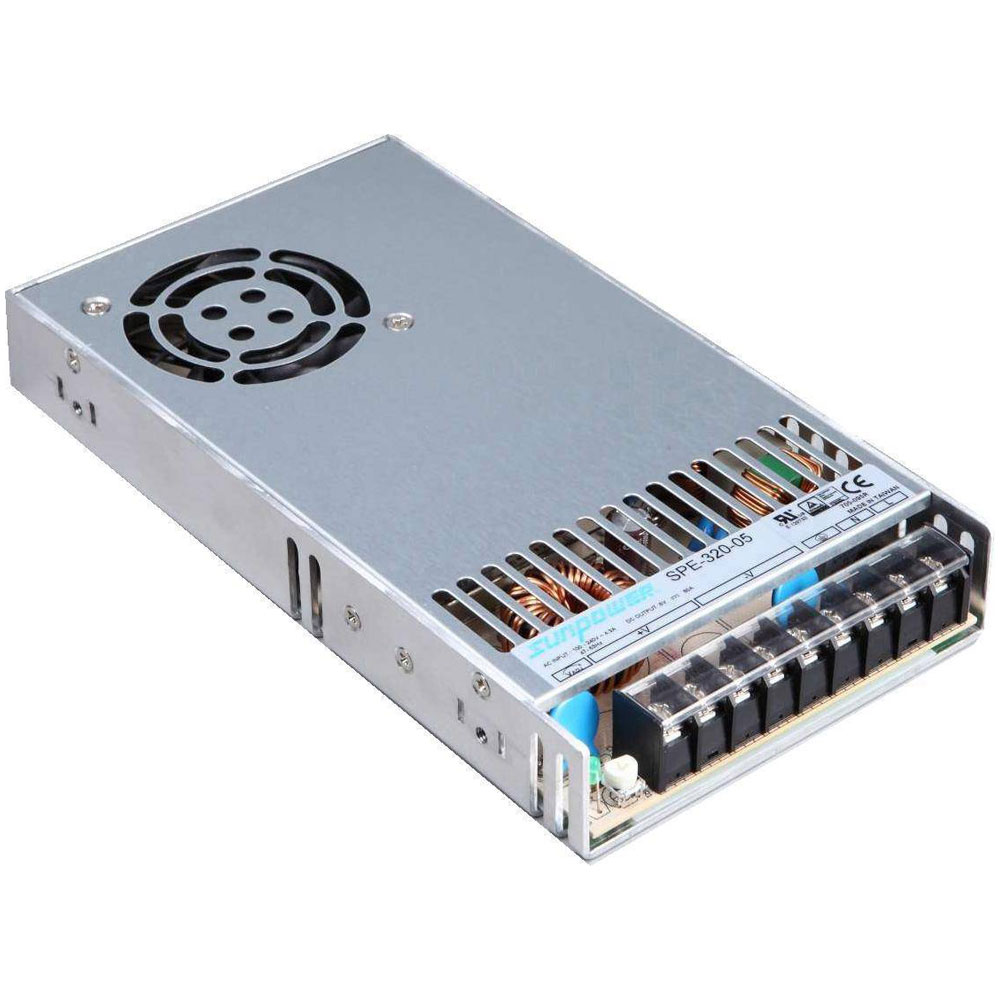

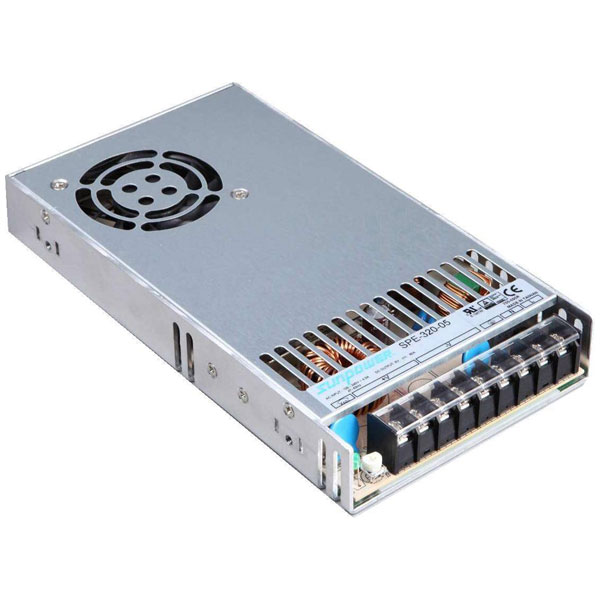

Dehner Elektronik SPE 320-12 Power Supply 12V 26.7A Compact 1U Rack

Name: Dehner Elektronik SPE 320-12 Power Supply 12V 26.7A Compact 1U Rack
Brand: Dehner Elektronik
Price: 100.47 GBP
Availability: InStock

Standard range

Order Code:

02-4686

Brand: Dehner Elektronik MPN: SPE 320-12 (12V 26.7A)

RoHS Compliant
Country of Origin: Taiwan
Free UK shipping available
View Full Product Range (10)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£100.47

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

2 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

Dehner Elektronik manufactures the SPE 320-12, a 320 W switched-mode power supply unit (SMPSU) that outputs 12 V at 26.7 A. This printed circuit board power supply unit is designed for easy PCB mount and features solder lugs for secure connections. It is typically used in applications requiring reliable power delivery on circuit boards.

Type	SMPSU
Connection	Screw terminal
Dim	(L x W x H) 212 x 115 x 30 mm
Height	30mm
Input voltage (max.)	264V AC
Length	212mm
Max. operating temperature (derating)	70°C
Max. output current	26.7A
Max. temperature	85°C
Min. input voltage	85V AC
Min. temperature	-40°C
Misc Attribute 1	SPE 320-12 (12V 26.7A)
Misc Attribute 2	closed
MTBF	179000h
No. of outputs	1
Output current (max.) - rounded	26.7A
Output voltage (max.)	12V DC
Output voltage (min.)	12V DC
PFC	Yes
Power	320W
PSU features	Regulated
Weight	720g
Width	115mm
