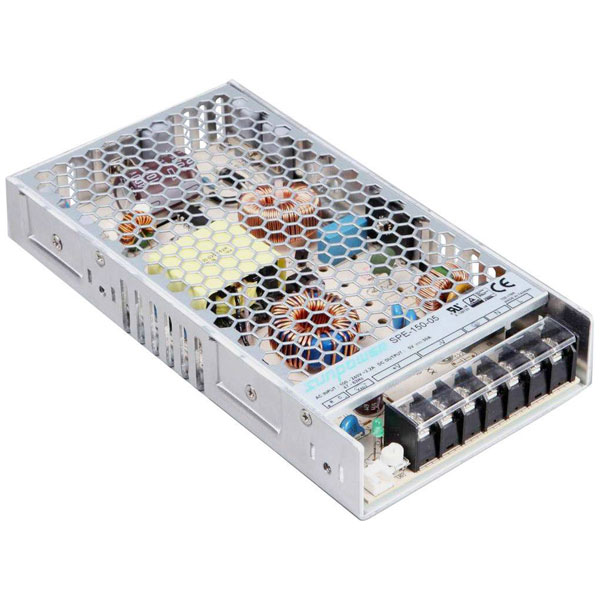

Dehner Elektronik SPE 150-05 PSU 5V 30A 150W EN 62368-1 Compliant

MPN: SPE 150-05
Brand: Dehner Elektronik
EAN-13: 4251125200875
Order Code: 02-4679
Country of Origin: Taiwan

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£71.33

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Back order - 89 availableBack-order availability date - 09/08/2026

Product Details
Product Range
Data Sheets

The Dehner Elektronik SPE 150-05 is an industrial power supply unit providing 5 V at 30 A with 150 W output. It is designed for PCB mounting and complies with EN 62368-1 standards. Typical applications include use in electronic equipment requiring reliable AC-DC power conversion.

Output Voltage	5V
Output Current	30A
Power Rating	150W
Number of Outputs	1
Input Voltage	85-264VAC: 120V-375VDC
Connection	Screw terminal
Dimensions	(L x W x H) 190 x 100 x 30 mm
Height	30mm
Length	190mm
Maximum Operating Temperature	70°C
Maximum Temperature	85°C
Min. operating temperature (derating)	-30°C
Min. temperature	-40°C
Misc Attribute 1	Switched PSU
Misc Attribute 3	closed
MTBF	160.000h
PSU features	Regulated
Type	Industrial PSU
Weight	510g
Width	100mm
