Dehner Elektronik SE 15-24VF LED Driver 24V 15W Surge-Protected Indoor Use

Dehner Elektronik
Order Code:

02-4658

Brand: Dehner Elektronik MPN: SE 15-24VF (24VDC) EAN-13: 4251125203357
Qty Unit Price (Ex VAT)
1+ £9.87
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
86 in stock, despatched in 4 working days

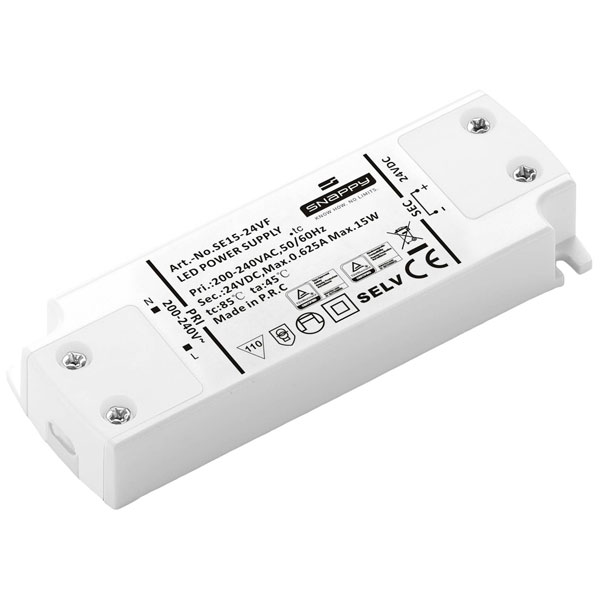

The Dehner Elektronik SE 15-24VF is a 15 W LED transformer providing a constant voltage output of 24 V DC and 0.625 A, suitable for LED applications. Featuring surge and overvoltage protection, it is approved for use on furniture. This LED driver is ideal for maintaining consistent power to LED strips and fixtures.
Type LED transformer
Connection Screw terminal
Dim (L x W x H) 103 x 35 x 17 mm
Factory colour White
Height 17mm
Input voltage (max.) 264V AC
IP Rating IP20 (when built in)
Length 103mm
Max. output current 0.625A
Max. power 15W
Max. temperature 45°C
Min. input voltage 180V AC
Min. temperature -20°C
Misc Attribute 1 Constant voltage
Misc Attribute 2 Switched PSU
Number of Inputs 1
Number of Outputs 1
Operating Voltage 240V AC
Output current (max.) - rounded 625mA
Output voltage (max.) 24V DC
Output voltage (min.) 24V DC
Power range 15 W (max)
Protection Class IP20
Test mark IEC / EN 61347-1, IEC / EN 61347-2-13, UL8750, EN 55015, EN 61547, EN 61000-3-2 Class C
Width 35mm
