Dehner Elektronik LED 24V200W-MM-EU Transformer 200W 24V DC Surge Protected

Dehner Elektronik
Standard range
Order Code:

02-4642

Brand: Dehner Elektronik MPN: LED 24V200W-MM-EU
Qty Unit Price (Ex VAT)
1+ £64.53
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched in 4 working days

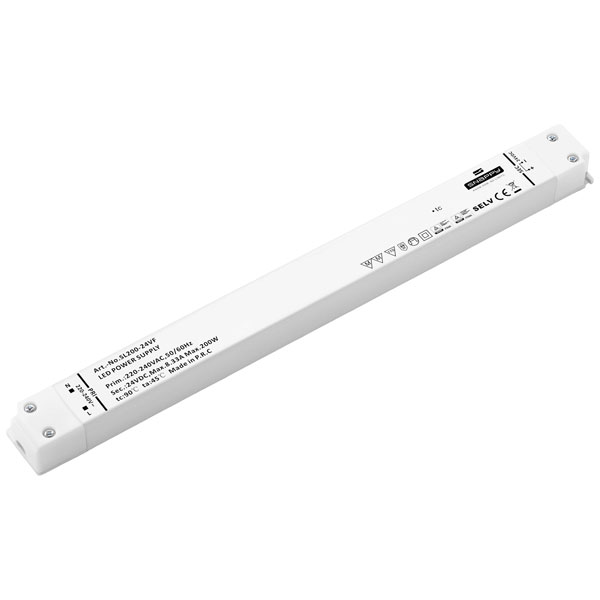

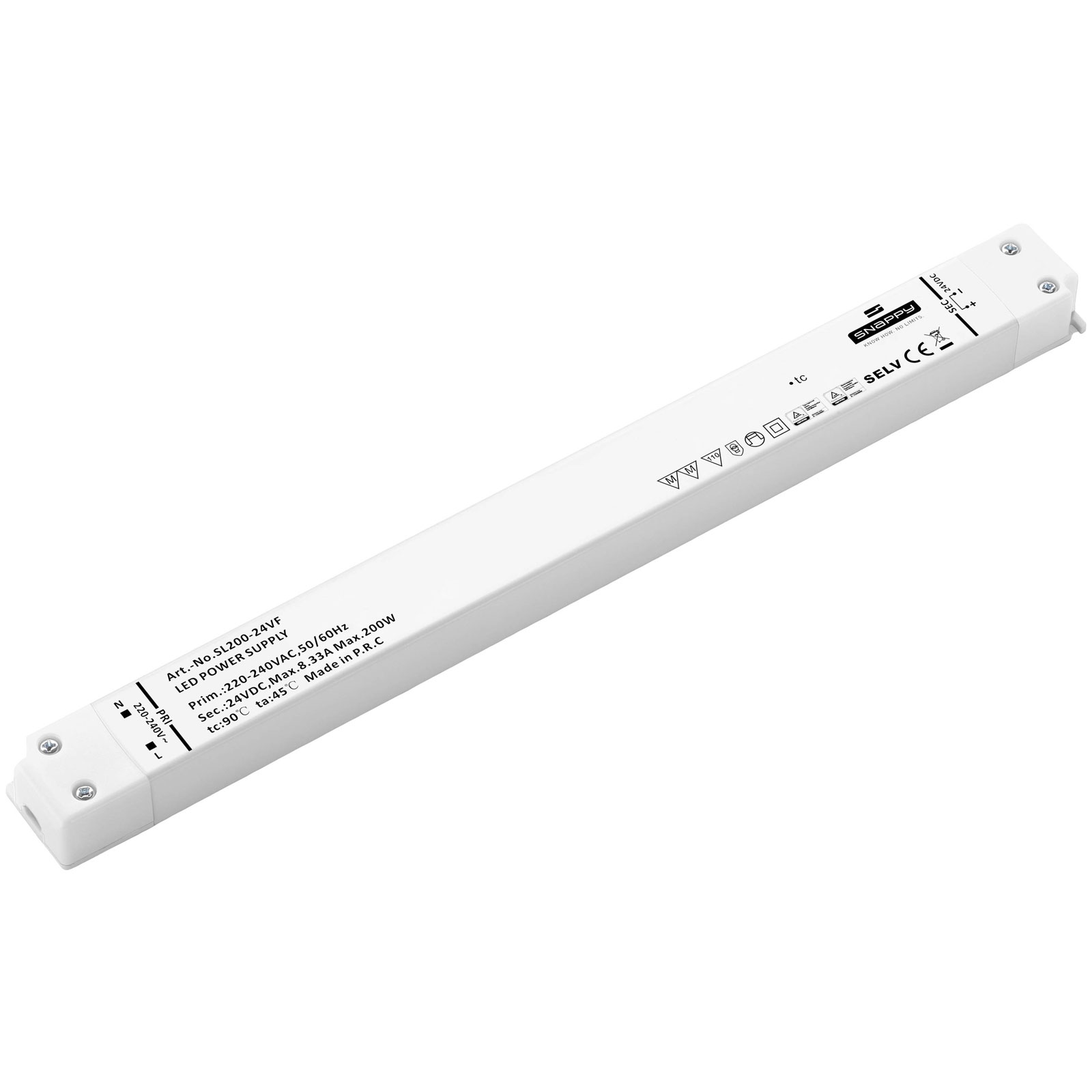

Dehner Elektronik's LED 24V200W-MM-EU LED transformer delivers a constant voltage of 24 V DC with a power output of 200 W, suitable for driving LED applications like LED strip lights. Equipped with surge protection and overvoltage safety features, this LED driver is approved for use on furniture. Its robust design ensures reliability for both residential and commercial settings.
Type LED transformer
Connection Screw terminal
Dim (L x W x H) 322 x 30 x 21.5 mm
Factory colour White
Height 21.5mm
Input voltage (max.) 264V AC
IP rating IP20
Length 322mm
Max. output current 8.33A
Max. power 200W
Max. temperature 45°C
Min. input voltage 180V AC
Min. temperature -20°C
Misc Attribute 1 Constant voltage
Misc Attribute 2 Switched PSU
No. of inputs 1
No. of outputs 1
Operating voltage 240V AC
Output current (max.) - rounded 8.33A
Output voltage (max.) 24V DC
Power range 200 W (max)
Protection class IP20
Test mark MM; SELV; TÜV; CE; UKCA
Weight 285g
Width 30mm
