Dehner Elektronik DLP 1100D-24F Rail PSU 100W 4.2A 1 Output DIN Mount

Dehner Elektronik
Standard range
Order Code:

02-4634

Brand: Dehner Elektronik MPN: DLP 1100D-24F
Qty Unit Price (Ex VAT)
1+ £29.82
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

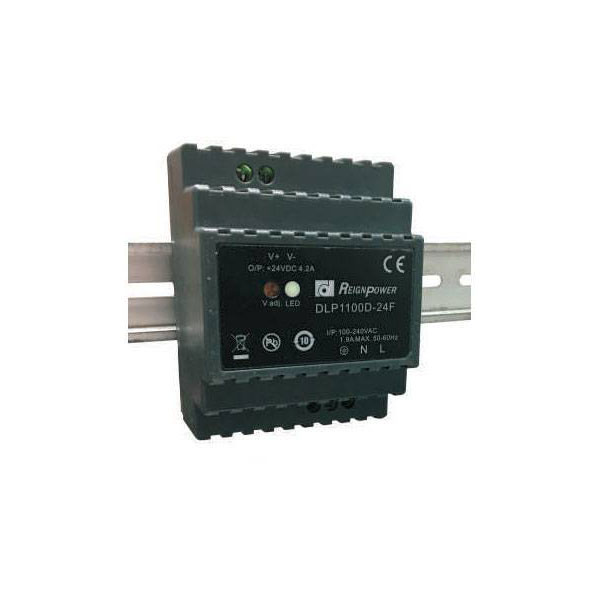

Dehner Elektronik's DLP 1100D-24F is a rail-mounted power supply unit providing a single output of 4.2 A at 100 W. This industrial-grade PSU is designed for easy installation on DIN rails. It is ideal for applications requiring reliable power supply in industrial settings.
Type Rail mounted PSU (DIN)
Connection Screw terminal
Dim (L x W x H) 95 x 70 x 60 mm
Height 60mm
Input Voltage 90 - 264V AC
Length 95mm
Manufacturer part # DLP 1100D-24F
Max. operating temperature (derating) 50°C
Max. output current 4.2A
Max. temperature 85°C
Min. operating temperature (derating) -15°C
Min. temperature -20°C
Misc Attribute 1 DLP 1100D-24F
Misc Attribute 2 Switched PSU
No. of outputs 1
Output current (max.) - rounded 4.2A
Output type (power supply units) Fixed voltage
Output voltage 24V DC
Power 100W
PSU features Regulated
Weight 230g
Width 70mm
