DEGSON DG301-5.0-03P-12 Screw Terminal 1.50mm² 3 Pins Blue 1pc

Degson
Order Code:

02-4413

Brand: Degson MPN: DG301-5.0-03P-12 EAN-13: 2050000573385
Qty Unit Price (Ex VAT)
20+ £0.269
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,095 in stock, despatched in 4 working days

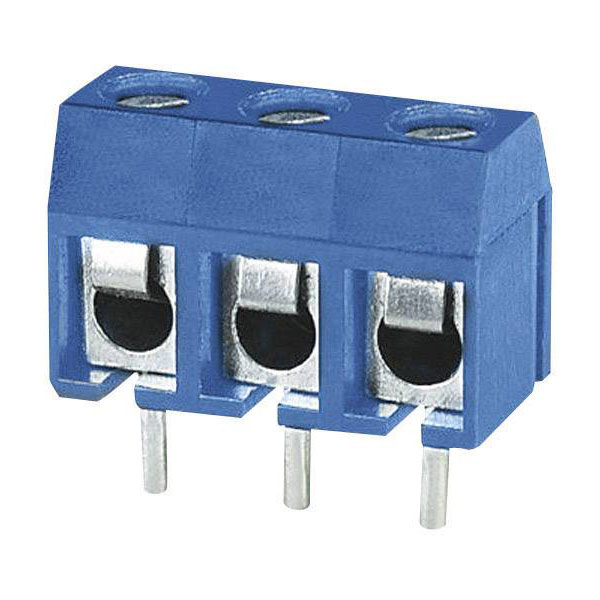

The DEGSON DG301-5.0-03P-12 is a blue, three-pin screw terminal designed for printed circuit boards, capable of handling wires up to 1.50 mm². Manufactured by DEGSON, this modular component provides reliable connections for various electronics applications. It is ideal for use in securing electrical connections in electronic assemblies and control panels.
Pitch 5mm
No. of Ways 3
Mounting Type Through Hole
Mounting Direction Horizontal
Wire Gauge (AWG) 26 - 14 AWG
Wire Termination Screw, Wire Protector
Actuation direction Perpendicular (to the PCB)
AWG (min.) 22
Colour Blue
Connector cross section 1.5mm²
Contact Material Brass tin plated
Cross Section 1.5mm²
Cross section (flexible) (max.) 1.50mm²
Cross section (inflexible) (max.) 1.50mm²
CS 5mm
Current Rating 15A
Factory colour Blue
Height 14.30mm
Length 7.60mm
Material (details) PBT, UL94V-0
Min. stripping length 5mm
Misc Attribute 1 Print-terminal block, horizontal, with wire protection, Modular
No. of Levels 1
Pins per row 3
Series DG301
Stripping length (max.) 6mm
Type Screw terminal
Voltage Rating 300V
Width 15.00mm
Wire protection Yes
