DEGSON DG221-5.6-03P-17-12A(H) Terminal 3-Pole Flexible/Rigid 0.14-4.0 mm²

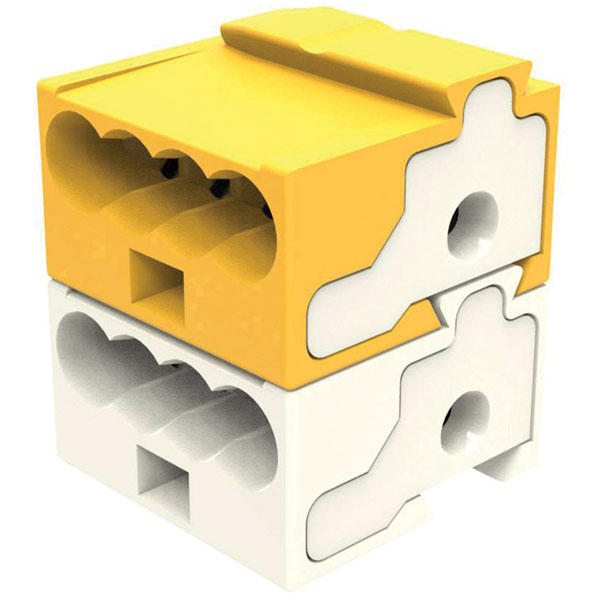

Image Representative of Range

DEGSON DG221-5.6-03P-17-12A(H) Terminal 3-Pole Flexible/Rigid 0.14-4.0 mm²

Degson
Standard range
Order Code:

02-4370

Brand: Degson MPN: DG221-5.6-03P-17-12A(H)
Qty Unit Price (Ex VAT)
1+ £0.402
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,542 in stock, despatched in 4 working days

The DEGSON DG221-5.6-03P-17-12A(H) is a connection terminal accommodating both flexible cables (0.14-4.0 mm²) and rigid cables (0.20-4.0 mm²). Designed with three poles, it is typically used in electrical connections requiring transparent visibility for ease of inspection. This eu standard terminal is suitable for various electrical installations and is commonly found in industrial and residential wiring systems.
Pitch 5,6mm
AWG 24 - 12
Connection Pull spring
Connector clip features Test window
Cross section (flexible) (max.) 4.0mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 4.0mm²
Cross section (inflexible) (min.) 0.20mm²
Dim (L x W) 20.0 mm x 18.7 mm
Insulation material Plastic
Length 20.0mm
Manufacturer part # DG221-5.6-03P-17-12A(H)
Nominal current 32A
Nominal current - rounded value 32A
Nominal voltage 450V
Number of pins 3
RoHS-compliant Yes
Series DG221
Stripping length 12mm
Temperature Range -40 °C up to +85°C
Type Connector clip
Width 18.7mm
