DEGSON DG126-5.0-03P-14-00AH-1 Screw Terminal 2mm² 3 Pins Green 1pc

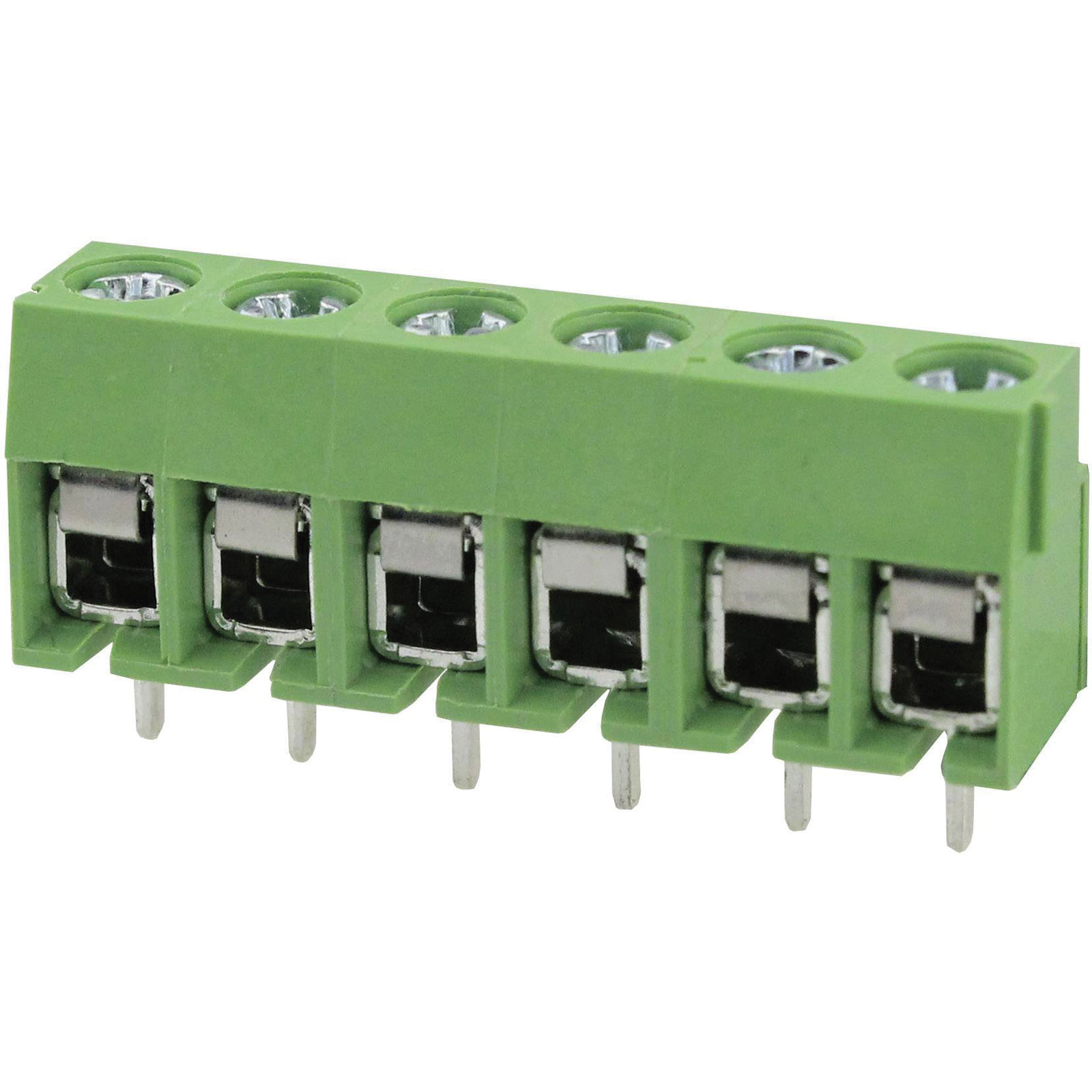

Image Representative of Range

DEGSON DG126-5.0-03P-14-00AH-1 Screw Terminal 2mm² 3 Pins Green 1pc

Degson
Standard range
Order Code:

02-4341

Brand: Degson MPN: DG126-5.0-03P-14-00AH-1
Qty Unit Price (Ex VAT)
1+ £0.269
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
292 in stock, despatched in 4 working days

The DEGSON DG126-5.0-03P-14-00AH-1 is a green screw terminal block designed for connecting wires up to 2 mm² with three pins. It features wire protection and is ideal for use on printed circuit boards. This component is typically used in various electronic applications where secure and reliable wire connections are necessary.
No. of rows 1
Actuation direction Perpendicular (to the PCB)
AWG (min.) 26
AWG max. 14
Connector orientation Parallel (to the PCB)
Contact material Brass tin plated
Cross section (flexible) (max.) 2mm²
Cross section (flexible) (min.) 0.32mm²
Cross section (inflexible) (max.) 2mm²
Cross section (inflexible) (min.) 0.32mm²
CS 5mm
Enclosure material Polyamide 6.6
Factory colour Green
Height 14.80mm
Length 8.00mm
Manufacturer part # DG126-5.0-03P-14-00AH-1
Min. stripping length 6mm
Misc Attribute DG126-5.0-03P-14-00AH
Nominal current 10A
Nominal current - rounded value 10A
Nominal voltage 300V
Number of pins 3
Pins per row 3
Series DG350
Stripping length (max.) 7mm
Type Screw terminal
Weight 2.30g
Width 15.00mm
Wire protection Yes
